H090 switch control panel

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Manual electric controls › H090 switch control panel

Connectors and pin-outsH090 switch control panel

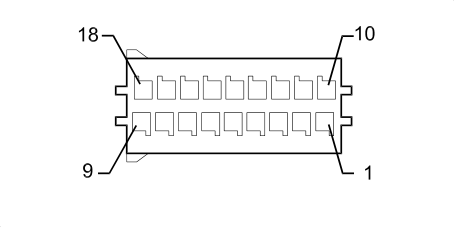

H090 SWITCH CONTROL PANEL

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
5		NR		See M001D BODY COMPUTER (DASHBOARD)	49
6		LR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	13
7		HN		See M001D BODY COMPUTER (DASHBOARD)	23
8		AG		See M001D BODY COMPUTER (DASHBOARD)	11
9		LG		See M001D BODY COMPUTER (DASHBOARD)	25
14		LV		See M001H BODY COMPUTER (DASHBOARD)	16
15		HM		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	12
16		GR		See M001D BODY COMPUTER (DASHBOARD)	10
17		LM		See M001D BODY COMPUTER (DASHBOARD)	39
18		SZ		See M001D BODY COMPUTER (DASHBOARD)	28

21 General
