D020 dashboard/rear coupling

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Intermediate couplings › D020 dashboard/rear coupling

Connectors and pin-outsD020 dashboard/rear coupling

D020 DASHBOARD/REAR COUPLING

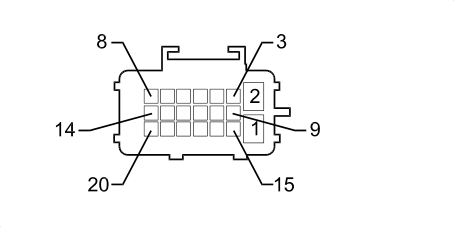

D020A – Dashboard

HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RV		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	5
2	1	CN		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	4
5		BV		See E050 INSTRUMENT PANEL	7
6		HG		See E050 INSTRUMENT PANEL	8
9		MV		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	12
10		MN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	6
11		SV		See E050 INSTRUMENT PANEL	18
12		HM		See H090 SWITCH CONTROL PANEL	15
13		LR		See H090 SWITCH CONTROL PANEL	6
14	1	H		See P020A RADIO (DASHBOARD)	5
15	1	BR		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	11
16	1	NZ		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	10
17	1	V		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	6
18	1	G		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	16
19	1	AR		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	12
20	1	AN		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	13

HI-FI

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RV	X	See P020B RADIO (DASHBOARD)	7
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
2	1	CN	X	See P020B RADIO (DASHBOARD)	8
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
5		BV		See E050 INSTRUMENT PANEL	7
6		HG		See E050 INSTRUMENT PANEL	8
9		MV		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	12
10		MN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	6
11		SV		See E050 INSTRUMENT PANEL	18
12		HM		See H090 SWITCH CONTROL PANEL	15
13		LR		See H090 SWITCH CONTROL PANEL	6
14	1	H		See P020A RADIO (DASHBOARD)	5
15	1	BR		See P020B RADIO (DASHBOARD)	3
16	1	NZ		See P020B RADIO (DASHBOARD)	4
17	1	NR		See P020B RADIO (DASHBOARD)	5
18	1	BN		See P020B RADIO (DASHBOARD)	6
19	1	AR	X	See P020B RADIO (DASHBOARD)	1
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
20	1	AN	X	See P020B RADIO (DASHBOARD)	2
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8

All versions

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RV		See P020B RADIO (DASHBOARD)	7
2	1	CN		See P020B RADIO (DASHBOARD)	8
5		BV		See E050 INSTRUMENT PANEL	7
6		HG		See E050 INSTRUMENT PANEL	8
9		MV		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	12
10		MN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	6
11		SV		See E050 INSTRUMENT PANEL	18
12		HM		See H090 SWITCH CONTROL PANEL	15
13		LR		See H090 SWITCH CONTROL PANEL	6
14	1	H		See P020A RADIO (DASHBOARD)	5
15	1	BR		See P020B RADIO (DASHBOARD)	3
16	1	NZ		See P020B RADIO (DASHBOARD)	4
17	1	NR		See P020B RADIO (DASHBOARD)	5
18	1	BN		See P020B RADIO (DASHBOARD)	6
19	1	AR		See P020B RADIO (DASHBOARD)	1
20	1	AN		See P020B RADIO (DASHBOARD)	2

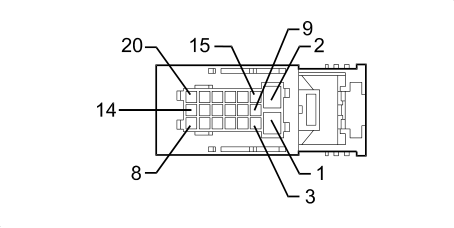

D020A – Rear

5 door, Right hand drive

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,0	RV		See D035 LEFT REAR DOOR COUPLING	18
2	1,0	CN		See D035 LEFT REAR DOOR COUPLING	17
5		BV		See D106 REAR/CROSSMEMBER COUPLING	4
6		HG		See B001B JUNCTION UNIT (REAR)	16
9		MV		See D106 REAR/CROSSMEMBER COUPLING	7
10		MN		See D106 REAR/CROSSMEMBER COUPLING	8
11		SV		See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR)	7
12		HM		See M050 ABS CONTROL UNIT	21
13		LR		See M050 ABS CONTROL UNIT	22
14	1,0	H	X	See P025 AERIAL FEED/AMPLIFIER	1
				See P049 REAR CENTRE WOOFER SPEAKER	8
15	1,0	BR		See D030 DRIVER'S FRONT DOOR COUPLING	4
16	1,0	NZ		See D030 DRIVER'S FRONT DOOR COUPLING	5
17	1,0	NR		See D031 PASSENGER FRONT DOOR COUPLING	4
18	1,0	BN		See D031 PASSENGER FRONT DOOR COUPLING	5
19	1,0	AR		See D036 RIGHT REAR DOOR COUPLING	18
20	1,0	AN		See D036 RIGHT REAR DOOR COUPLING	17

5 door

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,0	RV		See D035 LEFT REAR DOOR COUPLING	18
2	1,0	CN		See D035 LEFT REAR DOOR COUPLING	17
5		BV		See D106 REAR/CROSSMEMBER COUPLING	4
6		HG		See B001B JUNCTION UNIT (REAR)	16
9		MV		See D106 REAR/CROSSMEMBER COUPLING	7
10		MN		See D106 REAR/CROSSMEMBER COUPLING	8
11		SV		See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR)	7
12		HM		See M050 ABS CONTROL UNIT	21
13		LR		See M050 ABS CONTROL UNIT	22
14	1,0	H	X	See P025 AERIAL FEED/AMPLIFIER	1
				See P049 REAR CENTRE WOOFER SPEAKER	8
15	1,0	BR		See D031 PASSENGER FRONT DOOR COUPLING	4
16	1,0	NZ		See D031 PASSENGER FRONT DOOR COUPLING	5
17	1,0	NR		See D030 DRIVER'S FRONT DOOR COUPLING	4
18	1,0	BN		See D030 DRIVER'S FRONT DOOR COUPLING	5
19	1,0	AR		See D036 RIGHT REAR DOOR COUPLING	18
20	1,0	AN		See D036 RIGHT REAR DOOR COUPLING	17

3 door, Right hand drive

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,0	RV		See P030 LEFT REAR SPEAKER	1
2	1,0	CN		See P030 LEFT REAR SPEAKER	2
5		BV		See D106 REAR/CROSSMEMBER COUPLING	4
6		HG		See B001B JUNCTION UNIT (REAR)	16
9		MV		See D106 REAR/CROSSMEMBER COUPLING	7
10		MN		See D106 REAR/CROSSMEMBER COUPLING	8
11		SV		See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR)	7
12		HM		See M050 ABS CONTROL UNIT	21
13		LR		See M050 ABS CONTROL UNIT	22
14	1,0	H	X	See P025 AERIAL FEED/AMPLIFIER	1
				See P049 REAR CENTRE WOOFER SPEAKER	8
15	1,0	BR		See D030 DRIVER'S FRONT DOOR COUPLING	4
16	1,0	NZ		See D030 DRIVER'S FRONT DOOR COUPLING	5
17	1,0	NR		See D031 PASSENGER FRONT DOOR COUPLING	4
18	1,0	BN		See D031 PASSENGER FRONT DOOR COUPLING	5
19	1,0	AR		See P031 RIGHT REAR SPEAKER	1
20	1,0	AN		See P031 RIGHT REAR SPEAKER	2

3 door

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,0	RV		See P030 LEFT REAR SPEAKER	1
2	1,0	CN		See P030 LEFT REAR SPEAKER	2
5		BV		See D106 REAR/CROSSMEMBER COUPLING	4
6		HG		See B001B JUNCTION UNIT (REAR)	16
9		MV		See D106 REAR/CROSSMEMBER COUPLING	7
10		MN		See D106 REAR/CROSSMEMBER COUPLING	8
11		SV		See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR)	7
12		HM		See M050 ABS CONTROL UNIT	21
13		LR		See M050 ABS CONTROL UNIT	22
14	1,0	H	X	See P025 AERIAL FEED/AMPLIFIER	1
				See P049 REAR CENTRE WOOFER SPEAKER	8
15	1,0	BR		See D031 PASSENGER FRONT DOOR COUPLING	4
16	1,0	NZ		See D031 PASSENGER FRONT DOOR COUPLING	5
17	1,0	NR		See D030 DRIVER'S FRONT DOOR COUPLING	4
18	1,0	BN		See D030 DRIVER'S FRONT DOOR COUPLING	5
19	1,0	AR		See P031 RIGHT REAR SPEAKER	1
20	1,0	AN		See P031 RIGHT REAR SPEAKER	2

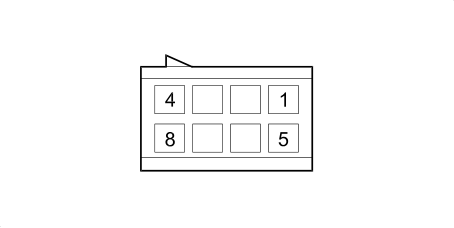

D020B – Dashboard

Bluetooth, HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	24
2		G		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	8
3		GR		See P020A RADIO (DASHBOARD)	1
4		B		See P020A RADIO (DASHBOARD)	3
5	1	RV	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	10
				See P020B RADIO (DASHBOARD)	7
6	1	CN	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	4
				See P020B RADIO (DASHBOARD)	8
7	1	AR	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	9
				See P020B RADIO (DASHBOARD)	1
8	1	AN	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	3
				See P020B RADIO (DASHBOARD)	2

Bluetooth, HI-FI

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	24
2		G		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	8
3		GR		See P020A RADIO (DASHBOARD)	1
4		B		See P020A RADIO (DASHBOARD)	3
5	1	RV	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	1
				See P020B RADIO (DASHBOARD)	7
6	1	CN	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
				See P020B RADIO (DASHBOARD)	8
7	1	AR	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	19
				See P020B RADIO (DASHBOARD)	1
8	1	AN	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	20
				See P020B RADIO (DASHBOARD)	2

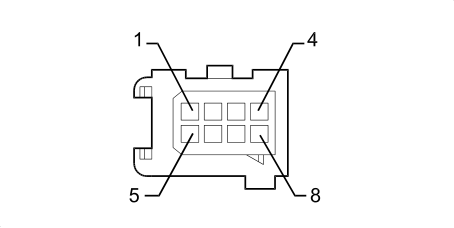

D020B – Rear

Bluetooth, HI-FI

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See P026 HANDSFREE MICROPHONE	1
2		G		See P026 HANDSFREE MICROPHONE	2
3		GR	X	See M050 ABS CONTROL UNIT	23
				See D045 SUN ROOF COUPLING	2
4		B	X	See F033 REVERSING LIGHT	2
				See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR)	12
5		RV		See P049 REAR CENTRE WOOFER SPEAKER	1
6		CN		See P049 REAR CENTRE WOOFER SPEAKER	4
7		AR		See P049 REAR CENTRE WOOFER SPEAKER	2
8		AN		See P049 REAR CENTRE WOOFER SPEAKER	5
