F033 reversing light
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Exterior lights › F033 reversing light
Connectors and pin-outsF033 reversing light

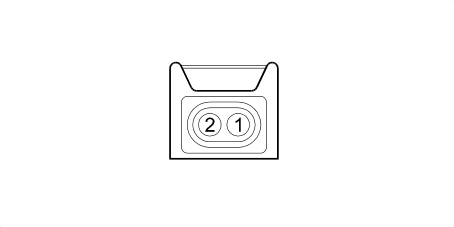

F033 REVERSING LIGHT
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,0 | N | See C030B LEFT REAR EARTH (REAR) | ||
| 2 | 1,0 | B | X | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 4 |
| See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR) | 12 | ||||
