F021 right side repeater
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Exterior lights › F021 right side repeater
Connectors and pin-outsF021 right side repeater

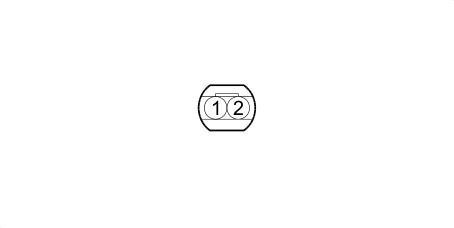

F021 RIGHT SIDE REPEATER
| Wiring | Colour |
|---|---|
| See 25 REAR | MARRONE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See C010B LEFT FRONT EARTH (REAR) | |||
| 2 | SN | See M001C BODY COMPUTER (REAR) | 10 | ||
