F010 left headlamp

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Exterior lights › F010 left headlamp

Connectors and pin-outsF010 left headlamp

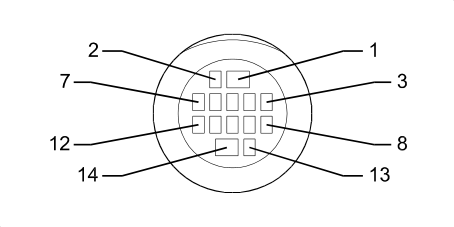

F010 LEFT HEADLAMP

Wiring	Colour
See 10 RADIATOR CROSSMEMBER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HN		See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	5
2		SB		See D106 REAR/CROSSMEMBER COUPLING	5
4		GR	X	See D106 REAR/CROSSMEMBER COUPLING	3
				See F011 RIGHT HEADLAMP	4
6		HL		See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	6
9		BV	X	See D106 REAR/CROSSMEMBER COUPLING	4
				See F011 RIGHT HEADLAMP	9
13		VN		See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	13
14	1	NZ		See C010A LEFT FRONT EARTH (RADIATOR CROSSMEMBER)
