D106 rear/crossmember coupling

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Intermediate couplings › D106 rear/crossmember coupling

Connectors and pin-outsD106 rear/crossmember coupling

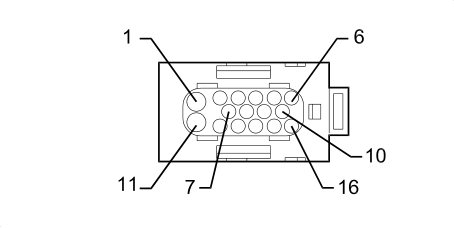

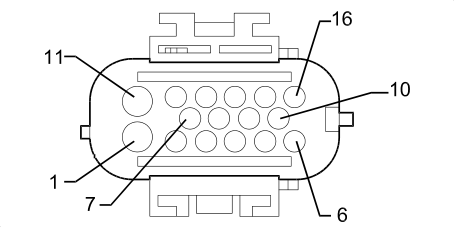

D106 REAR/CROSSMEMBER COUPLING

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3		GR		See M001C BODY COMPUTER (REAR)	13
4		BV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	5
5		SB		See M001C BODY COMPUTER (REAR)	9
6		SN		See M001C BODY COMPUTER (REAR)	1
7		MV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	9
8		MN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	10

Wiring	Colour
See 10 RADIATOR CROSSMEMBER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3		GR	X	See F010 LEFT HEADLAMP	4
				See F011 RIGHT HEADLAMP	4
4		BV	X	See F010 LEFT HEADLAMP	9
				See F011 RIGHT HEADLAMP	9
5		SB		See F010 LEFT HEADLAMP	2
6		SN		See F011 RIGHT HEADLAMP	2
7		RV		See K039 FRONT AIR BAG SENSOR	2
8		MN		See K039 FRONT AIR BAG SENSOR	1
