D047 clock spring coupling

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Intermediate couplings › D047 clock spring coupling

Connectors and pin-outsD047 clock spring coupling

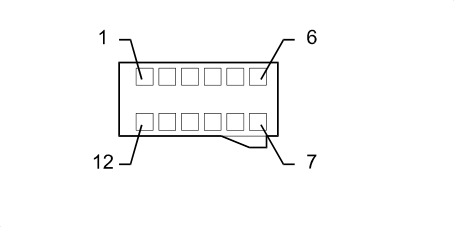

D047 CLOCK SPRING COUPLING

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3		HV		See M001D BODY COMPUTER (DASHBOARD)	52
4		HM		See M001D BODY COMPUTER (DASHBOARD)	50
5		LS	X	See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	32
				See M001H BODY COMPUTER (DASHBOARD)	18
7		MN		See M001D BODY COMPUTER (DASHBOARD)	35
8		HR		See M001D BODY COMPUTER (DASHBOARD)	53
9		V		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	19
10		VN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	20
11		L		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	15
12		LN		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	16
