D045 sun roof coupling

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Intermediate couplings › D045 sun roof coupling

Connectors and pin-outsD045 sun roof coupling

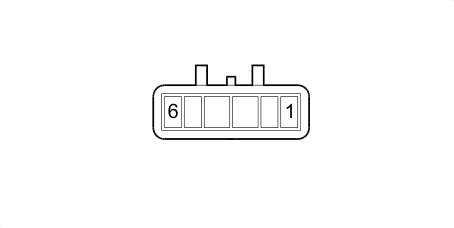

D045 SUN ROOF COUPLING

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AR		See D097A SHORT CIRCUITING COUPLING (REAR)	3
2		GR	X	See M050 ABS CONTROL UNIT	23
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
3	1,5	R		See B045B LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR)	17
4	1,5	N		See C015A DASHBOARD EARTH, DRIVER'S SIDE (REAR)	1
