D081 injector junction

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Intermediate couplings › D081 injector junction

Connectors and pin-outsD081 injector junction

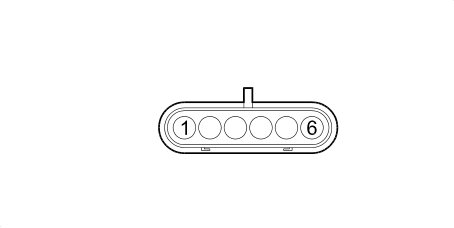

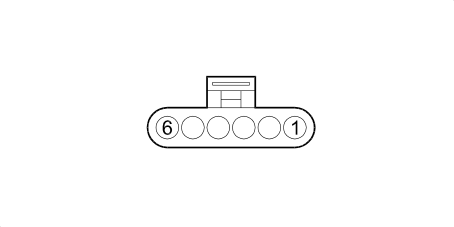

D081 INJECTOR JUNCTION

1.4 16v

Wiring	Colour
See 55 COILS/INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NR		See N070D INJECTOR (COILS/INJECTORS)	2
2	1	MN		See N070C INJECTOR (COILS/INJECTORS)	2
3	1	HN		See N070B INJECTOR (COILS/INJECTORS)	2
4	1	LN		See N070A INJECTOR (COILS/INJECTORS)	2
5	1,5	HG	X	See N070A INJECTOR (COILS/INJECTORS)	1
				See N070B INJECTOR (COILS/INJECTORS)	1
				See N070C INJECTOR (COILS/INJECTORS)	1
				See N070D INJECTOR (COILS/INJECTORS)	1

1.2 8v, 1.4 8v

Wiring	Colour
See 55 COILS/INJECTORS	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	LR		See N070B INJECTOR (COILS/INJECTORS)	2
1	1	GR		See N070A INJECTOR (COILS/INJECTORS)	2
3	1,5	MB	X	See N070A INJECTOR (COILS/INJECTORS)	1
				See N070B INJECTOR (COILS/INJECTORS)	1
				See N070C INJECTOR (COILS/INJECTORS)	1
				See N070D INJECTOR (COILS/INJECTORS)	1
4	1	RV		See N070C INJECTOR (COILS/INJECTORS)	2
5	1	NR		See N070D INJECTOR (COILS/INJECTORS)	2

1.4 16v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	19
2	1	MN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	2
3	1	HN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	17
4	1	LN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	33
5	1,5	CV	X	See A030A IGNITION COIL (ENGINE)	3
				See A030B IGNITION COIL (ENGINE)	3
				See A030C IGNITION COIL (ENGINE)	3
				See A030D IGNITION COIL (ENGINE)	3
				See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	1

1.2 8v, 1.4 8v

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	LN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	50
2	1	HN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	34
3	1	HG	X	See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING	1
				See A030 IGNITION COIL	1
4	1	MN		See M010B ENGINE MANAGEMENT ECU (ENGINE)	49
5	1	NR		See M010B ENGINE MANAGEMENT ECU (ENGINE)	33
