A030 ignition coil
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Starting - recharging › A030 ignition coil
Connectors and pin-outsA030 ignition coil

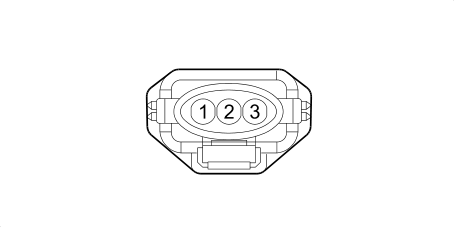

A030 IGNITION COIL
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | HG | X | See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING | 1 |
| See D081 INJECTOR JUNCTION | 3 | ||||
| 2 | 1 | BR | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 17 | |
| 3 | 1 | GR | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 19 | |
| 4 | 1 | BL | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 3 | |
| 5 | 1 | GN | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 1 | |
| 6 | 1,5 | N | See C040B ENGINE EARTH (ENGINE) | ||
A030A – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | RV | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 48 | |
| 2 | 1 | NZ | X | See C040 ENGINE EARTH | |
| See L031 PDA SOLENOID VALVE | 2 | ||||
| See A030B IGNITION COIL (ENGINE) | 2 | ||||
| See A030C IGNITION COIL (ENGINE) | 2 | ||||
| See A030D IGNITION COIL (ENGINE) | 2 | ||||
| 3 | 1 | CV | X | See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING | 1 |
| See A030B IGNITION COIL (ENGINE) | 3 | ||||
| See A030C IGNITION COIL (ENGINE) | 3 | ||||
| See A030D IGNITION COIL (ENGINE) | 3 | ||||
| See D081 INJECTOR JUNCTION | 5 | ||||
A030B – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | GR | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 63 | |
| 2 | 1 | NZ | X | See C040 ENGINE EARTH | |
| See L031 PDA SOLENOID VALVE | 2 | ||||
| See A030A IGNITION COIL (ENGINE) | 2 | ||||
| See A030C IGNITION COIL (ENGINE) | 2 | ||||
| See A030D IGNITION COIL (ENGINE) | 2 | ||||
| 3 | 1 | CV | X | See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING | 1 |
| See A030A IGNITION COIL (ENGINE) | 3 | ||||
| See A030C IGNITION COIL (ENGINE) | 3 | ||||
| See A030D IGNITION COIL (ENGINE) | 3 | ||||
| See D081 INJECTOR JUNCTION | 5 | ||||
A030C – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | BL | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 64 | |
| 2 | 1 | NZ | X | See C040 ENGINE EARTH | |
| See L031 PDA SOLENOID VALVE | 2 | ||||
| See A030B IGNITION COIL (ENGINE) | 2 | ||||
| See A030A IGNITION COIL (ENGINE) | 2 | ||||
| See A030D IGNITION COIL (ENGINE) | 2 | ||||
| 3 | 1 | CV | X | See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING | 1 |
| See A030B IGNITION COIL (ENGINE) | 3 | ||||
| See A030A IGNITION COIL (ENGINE) | 3 | ||||
| See A030D IGNITION COIL (ENGINE) | 3 | ||||
| See D081 INJECTOR JUNCTION | 5 | ||||
A030D – Engine
| Wiring | Colour |
|---|---|
| See 50 ENGINE | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | GH | See M010B ENGINE MANAGEMENT ECU (ENGINE) | 47 | |
| 2 | 1 | NZ | X | See C040 ENGINE EARTH | |
| See L031 PDA SOLENOID VALVE | 2 | ||||
| See A030A IGNITION COIL (ENGINE) | 2 | ||||
| See A030B IGNITION COIL (ENGINE) | 2 | ||||
| See A030C IGNITION COIL (ENGINE) | 2 | ||||
| 3 | 1 | CV | X | See D029 ENGINE CABLES/ENGINE SERVICES CABLE COUPLING | 1 |
| See A030A IGNITION COIL (ENGINE) | 3 | ||||
| See A030B IGNITION COIL (ENGINE) | 3 | ||||
| See A030C IGNITION COIL (ENGINE) | 3 | ||||
| See D081 INJECTOR JUNCTION | 5 | ||||
