P020 radio

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Various consumers › P020 radio

Connectors and pin-outsP020 radio

P020 RADIO

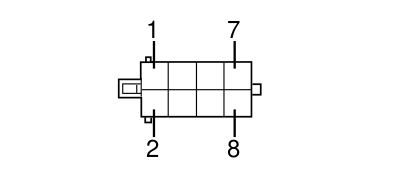

P020A – Dashboard

Provision for navigator

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GR		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
3		B		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	4
4	1,5	RB		See M001H BODY COMPUTER (DASHBOARD)	1
5	1	H		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	14
6		A		See M001H BODY COMPUTER (DASHBOARD)	19
7		LS		See M001H BODY COMPUTER (DASHBOARD)	18
8	2,5	N		See C015C DASHBOARD EARTH, DRIVER'S SIDE (DASHBOARD)

HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS	X	See M001D BODY COMPUTER (DASHBOARD)	5
				See E050 INSTRUMENT PANEL	6
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	30
3		BS	X	See M001D BODY COMPUTER (DASHBOARD)	20
				See E050 INSTRUMENT PANEL	5
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	14
4	1,5	RB	X	See M001H BODY COMPUTER (DASHBOARD)	1
				See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	1
5		H	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	14
				See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	8
8	2,5	N		See C015C DASHBOARD EARTH, DRIVER'S SIDE (DASHBOARD)

Provision for car ratio

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
4	1,5	RB		See M001H BODY COMPUTER (DASHBOARD)	1
5	1	H		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	14
6		A		See M001H BODY COMPUTER (DASHBOARD)	19
7		LS		See M001H BODY COMPUTER (DASHBOARD)	18
8	2,5	N		See C015C DASHBOARD EARTH, DRIVER'S SIDE (DASHBOARD)

All versions

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS	X	See M001D BODY COMPUTER (DASHBOARD)	5
				See E050 INSTRUMENT PANEL	6
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	8
				See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	30
3		BS	X	See M001D BODY COMPUTER (DASHBOARD)	20
				See E050 INSTRUMENT PANEL	5
				See M060A AIR BAG CONTROL UNIT (DASHBOARD)	7
				See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	14
4	1,5	RB		See M001H BODY COMPUTER (DASHBOARD)	1
5		H		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	14
8	2,5	N		See C015C DASHBOARD EARTH, DRIVER'S SIDE (DASHBOARD)

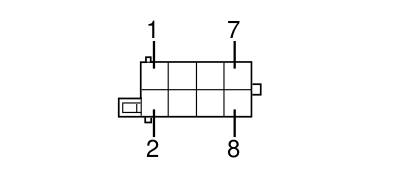

P020B – Dashboard

HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	AR	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	9
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
2	1	AN	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	3
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
3	1	BV		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	7
4	1	NV		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	1
5	1	NR		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	8
6	1	BN		See P070A RADIO HI-FI AMPLIFIER (DASHBOARD)	2
7	1	RV	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	10
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
8	1	CN	X	See P070B RADIO HI-FI AMPLIFIER (DASHBOARD)	4
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6

All versions

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	AR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	19
2	1	AN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	20
3	1	BR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15
4	1	NZ		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
5	1	NR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	17
6	1	BN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	18
7	1	RV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	1
8	1	CN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2

HI-FI

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	AR	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	19
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
2	1	AN	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	20
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
3	1	BR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15
4	1	NZ		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
5	1	NR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	17
6	1	BN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	18
7	1	RV	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	1
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
8	1	CN	X	See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6

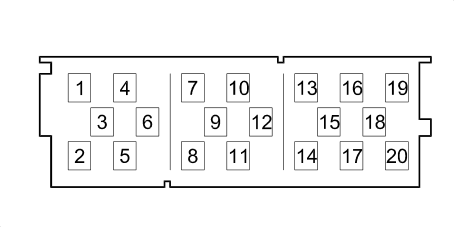

P020C – Dashboard

Bluetooth

Wiring	Colour
See 20 DASHBOARD	GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		H		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	5
2		V		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	22
3		SCH		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	21

P020D – Dashboard

Bluetooth

Wiring	Colour
See 20 DASHBOARD	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		AR		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	7
8		HN		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	23
9		HR		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	25
