P055 heated rearscreen
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Various consumers › P055 heated rearscreen
Connectors and pin-outsP055 heated rearscreen

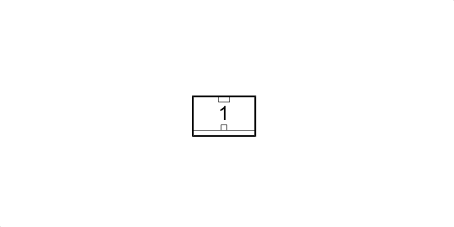

P055 HEATED REARSCREEN
P055A – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See C030A LEFT REAR EARTH (REAR) | ||
P055B – Rear
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | M | See B001B JUNCTION UNIT (REAR) | 5 | |
