P026 handsfree microphone
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Various consumers › P026 handsfree microphone
Connectors and pin-outsP026 handsfree microphone

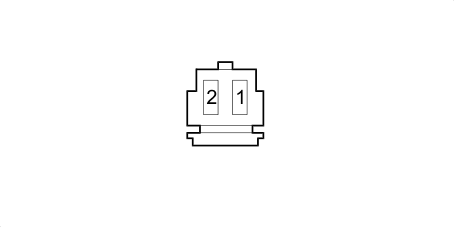

P026 HANDSFREE MICROPHONE
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 1 | ||
| 2 | G | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 2 | ||
