P025 aerial feed/amplifier
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Various consumers › P025 aerial feed/amplifier
Connectors and pin-outsP025 aerial feed/amplifier

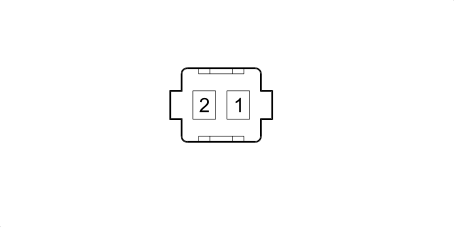

P025 AERIAL FEED/AMPLIFIER
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,0 | H | X | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 14 |
| See P049 REAR CENTRE WOOFER SPEAKER | 8 | ||||
