P046 right front tweeter speaker
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Various consumers › P046 right front tweeter speaker
Connectors and pin-outsP046 right front tweeter speaker

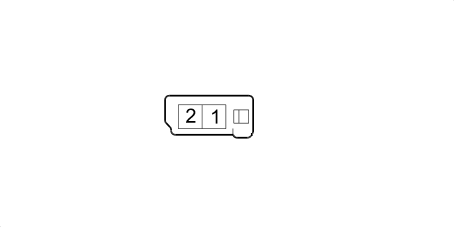

P046 RIGHT FRONT TWEETER SPEAKER
| Wiring | Colour |
|---|---|
| See 31 FRONT PASSENGER DOOR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | BR | X | See D031 PASSENGER FRONT DOOR COUPLING | 4 | |
| See P036 SPEAKER IN RIGHT FRONT DOOR | 1 | ||||
| 2 | NZ | X | See D031 PASSENGER FRONT DOOR COUPLING | 5 | |
| See P036 SPEAKER IN RIGHT FRONT DOOR | 2 | ||||
