P052 rear current socket
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Various consumers › P052 rear current socket
Connectors and pin-outsP052 rear current socket

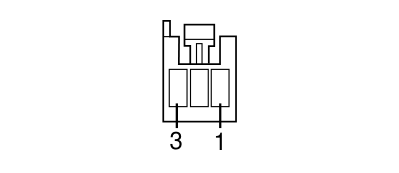

P052 REAR CURRENT SOCKET
| Wiring | Colour |
|---|---|
| See 25 REAR | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1,5 | A | See B045B LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR) | 18 | |
| 3 | 1,5 | N | See C030A LEFT REAR EARTH (REAR) | ||
