Connectors and pin-outsP143 usb socket

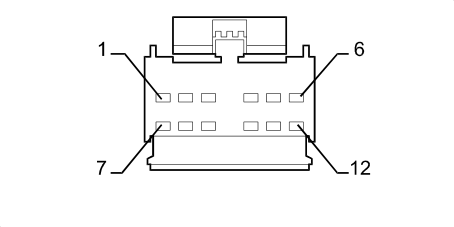

P143 USB SOCKET
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | R | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 20 | ||
| 3 | B | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 19 | ||
| 4 | V | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 4 | ||
| 5 | N | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 3 | ||
| 6 | SCH | See M162A BLUETOOTH CONTROL UNIT (DASHBOARD) | 31 | ||
