P070 radio hi-fi amplifier

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Various consumers › P070 radio hi-fi amplifier

Connectors and pin-outsP070 radio hi-fi amplifier

P070 RADIO HI-FI AMPLIFIER

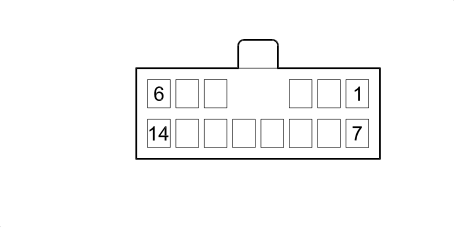

P070A – Dashboard

HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	NV		See P020B RADIO (DASHBOARD)	4
2	1	BN		See P020B RADIO (DASHBOARD)	6
4	1	CN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
5	1	RV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	1
6	1	V		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	17
7	1	BV		See P020B RADIO (DASHBOARD)	3
8	1	NR		See P020B RADIO (DASHBOARD)	5
10	1	NZ		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	16
11	1	BR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	15
12	1	AR		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	19
13	1	AN		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	20
16	1	G		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	18

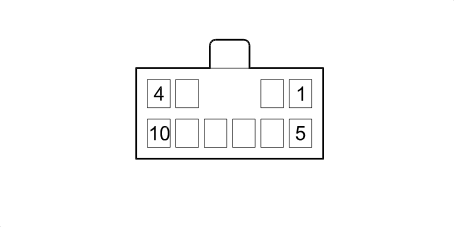

P070B – Dashboard

HI-FI – Interscope

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RB	X	See M001H BODY COMPUTER (DASHBOARD)	1
				See P020A RADIO (DASHBOARD)	4
2		N		See C015C DASHBOARD EARTH, DRIVER'S SIDE (DASHBOARD)
3	1	AN	X	See P020B RADIO (DASHBOARD)	2
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
4	1	CN	X	See P020B RADIO (DASHBOARD)	8
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
8		H		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	14
				See P020A RADIO (DASHBOARD)	5
9	1	AR	X	See P020B RADIO (DASHBOARD)	1
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
10	1	RV	X	See P020B RADIO (DASHBOARD)	7
				See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
