P005 single-tone horn

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Various consumers › P005 single-tone horn

Connectors and pin-outsP005 single-tone horn

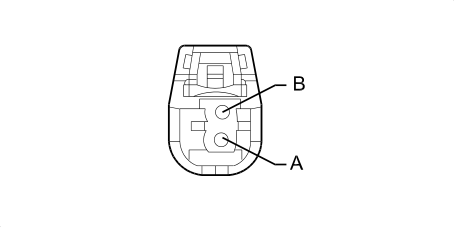

P005 SINGLE-TONE HORN

Wiring	Colour
See 10 RADIATOR CROSSMEMBER	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	1	ZN		See B001C JUNCTION UNIT (RADIATOR CROSSMEMBER)	19
B	1	N		See C010A LEFT FRONT EARTH (RADIATOR CROSSMEMBER)
