O041 passenger seat heater
- Make
- Fiat
- Model
- Grande Punto Factory Service Manual
- Year
- 2005–2012
- Section
- Resistances and dimmers › O041 passenger seat heater
Connectors and pin-outsO041 passenger seat heater

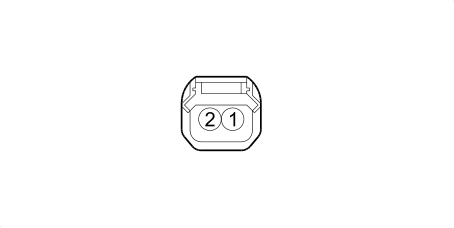

O041 PASSENGER SEAT HEATER
O041A – Right seat
| Wiring | Colour |
|---|---|
| See 37 RIGHT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | H | See D071C PASSENGER SEAT COUPLING (REAR) | 9 | |
| 2 | 1 | M | See O041B PASSENGER SEAT HEATER (RIGHT SEAT) | 1 | |
O041B – Right seat
| Wiring | Colour |
|---|---|
| See 37 RIGHT SEAT |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | M | See O041A PASSENGER SEAT HEATER (RIGHT SEAT) | 2 | |
| 2 | 1 | L | See D071C PASSENGER SEAT COUPLING (REAR) | 10 | |
