Connectors and pin-outsI030 brake pedal switch

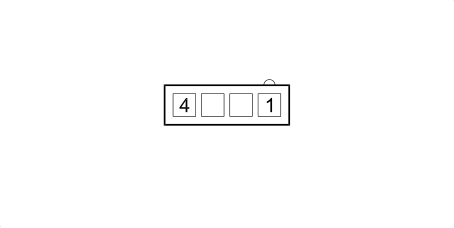

I030 BRAKE PEDAL SWITCH
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | CN | X | See M001A BODY COMPUTER (REAR) | 28 | |
| See D107A DASHBOARD-REAR/ENGINE SERVICES COUPLING (REAR) | 13 | ||||
| See M050 ABS CONTROL UNIT | 20 | ||||
| 2 | LN | See M001E BODY COMPUTER (REAR) | 8 | ||
| 3 | CB | See M001A BODY COMPUTER (REAR) | 19 | ||
| 4 | LH | See M001E BODY COMPUTER (REAR) | 22 | ||
