I067 driver's lumbar adjustment switch

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Switches › I067 driver's lumbar adjustment switch

Connectors and pin-outsI067 driver's lumbar adjustment switch

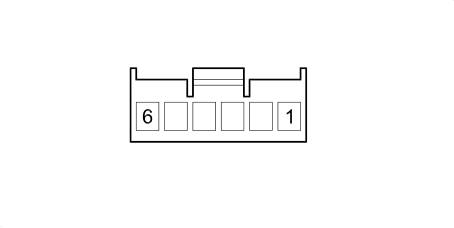

I067 DRIVER'S LUMBAR ADJUSTMENT SWITCH

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	1	MR		See D070C DRIVER'S SEAT COUPLING (REAR)	7
4	1	MN		See D070C DRIVER'S SEAT COUPLING (REAR)	8
5	1	LS		See B045B LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR)	4
6	1	NZ		See C015A DASHBOARD EARTH, DRIVER'S SIDE (REAR)	1
