RIGHT FRONT HEADLAMP - R.R

Operation 5540B08 · HEADLAMPS

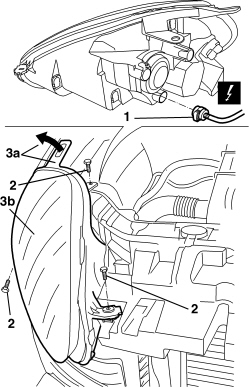

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7210E10 R.R. FRONT BUMPER

1. Disconnect the electrical connection.

Description	Component
RIGHT HEADLAMP	See F011 RIGHT HEADLAMP

2. Undo the bolts.

3. Raise tab (3a), release from its seat and recover lamp (3b).

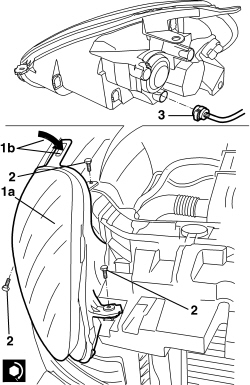

Refitting

- Check that the headlamp is not damaged.

1. Position headlamp (1a) and do up tab (1b).

2. Secure the headlamp with the bolts.

Components	Fastening	dia	Value (daNm)	Validity
Front light cluster	Bolt	M6	0.6 ÷ 0.8

3. Connect the electrical connection.

- Check that the headlamps are working.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
