LEFT FRONT HEADLAMP - R.R

Operation 5540B07 · HEADLAMPS

Removing

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 7210E10 R.R. FRONT BUMPER

1. Release anchorage (1a) from fitting (1b) of the reservoir containing the washer fluid from clip (1c).

2. Withdraw fitting (2a) of the reservoir from its seat (2b).

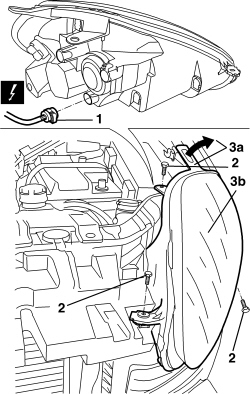

1. Disconnect the electrical connection.

2. Undo the bolts.

3. Raise tab (3a), release from its seat and recover lamp (3b).

Refitting

- Check that the headlamp is not damaged.

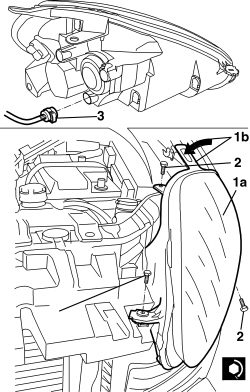

1. Position headlamp (1a) and do up tab (1b).

2. Secure the headlamp with the bolts.

3. Connect the electrical connection.

- Position the washer fluid reservoir fitting and do up the anchorage.

- Check that the headlamps are working.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
