REVERSING LIGHT - R+R

Operation 5550D24 · BRAKE AND REVERSING LIGHTS

Removing

- Position the vehicle on a lift and raise.

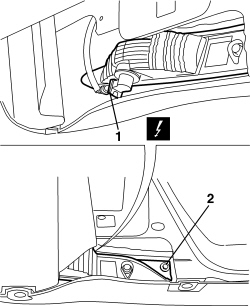

1. Disconnect the electrical connection.

2. Undo the foglamp retaining bolt

1. Release the tail-light tab (1a) from its seat (1b) on the bumpers and recover the tail-light (1c).

1. Rotate the bulb holder and extract it.

2. Remove the bulb from the bulb holder (bayonet fitting).

Refitting

- Check that the light is not damaged.

- If removed, fit the bulb in the bulb holder and fit the bulb holder in its seat with the bulb.

- Connect the electrical connection.

- Position the tail-light and insert the tab in the seat on the bumper.

- Secure the tail-light with the bolt.

- Check that the tail-light is working.

- Lower the vehicle and remove it from the lift.
