CYLINDER HEAD/S - VARIOUS OPERATIONS

Description 1016E

1.9 Multijet

CONSTRUCTION SPECIFICATIONS

The cylinder head is one-piece in aluminium alloy and silicone.

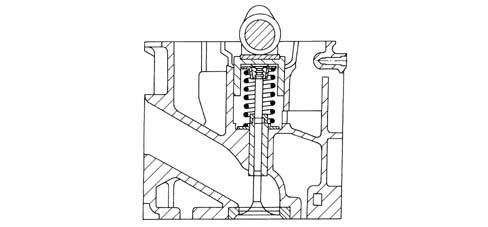

The two valves per cylinder, which are parallel and vertical, are fitted in their own valve guides and controlled by a single camshaft whose cams act on mechanical tappets.

The valve guides are an interference fit in the cylinder head seats. A special reamer is used to produce the correct inner diameter after fitting.

Unlike cylinder heads with prechamber, the entire combustion process takes place in the combustion chamber on the piston.

The gasket between cylinder head and crankcsae is metal and the head does not require retightening throughout the engine life.

1.3 Multijet

CONSTRUCTION SPECIFICATIONS

The cylinder head is one-piece in aluminium alloy and silicone.

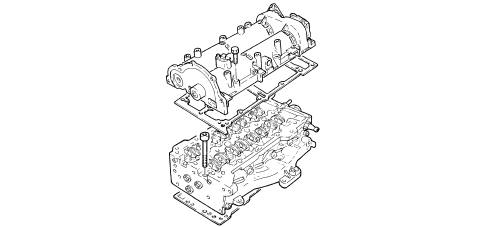

Two, ductile cast iron, overhead camshafts in a camshaft housing; they are operated by a chain and gears.

The four valves per cylinder, parallel and vertical, are positioned in the valve guides and are controlled by rocker arms operated by the camshaft cams and kept in contact with the valves through hydraulic tappets.

The valve guides are an interference fit in the cylinder head seats. A special reamer is used to produce the correct inner diameter after fitting.

Unlike cylinder heads with prechamber, the entire combustion process takes place in the combustion chamber on the piston.

The gasket between cylinder head and crankcsae is metal and the head does not require retightening throughout the engine life.
