INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

1.9 Multijet

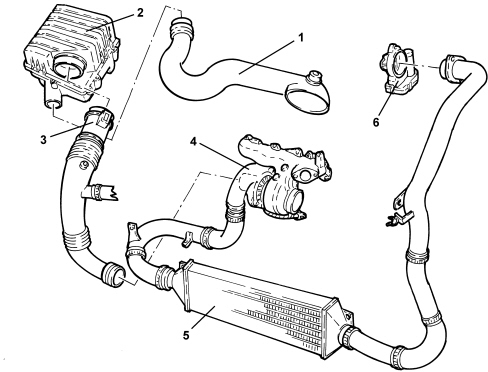

AIR SUPPLY SYSTEM

1. Cold air intake

2. Air filter assembly

3. Air flow meter

4. Turbocharger

5. Air-air heat exchanger (intercooler)

6. Throttle body

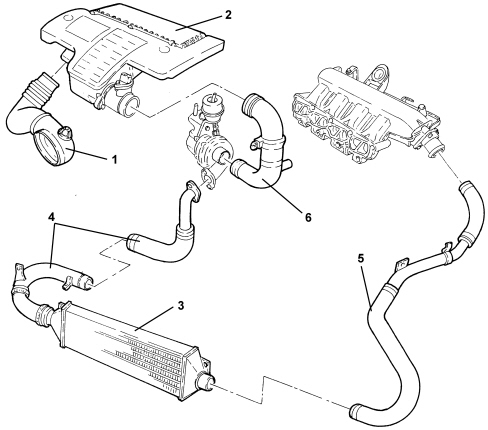

1.3 Multijet

1. Cold air intake

2. Air filter assembly

3. Air-air heat exchanger (intercooler)

4. Turbocharger outlet air pressure pipe

5. Intake chamber supply air pressure pipes

6. Intake air hoses from turbocharger
