RIGHT rear seat BACKREST COVER , (individual) - R.R.

Operation 7050D36 · REAR SEAT COVERS/UPHOLSTERY

Removing

- 7050A86 JOINT COVER GUARD for (one), individual rear seat left or right -R .R.

- 7050A64 HEAD RESTRAINT/UPPER BACKREST TRIM for rear seat- R.R. with backrest removed

- 7050A18 rear seat squab - r+r

- 7050B12 rear seat head restraint - r r

- 7050B08 GUIDE BUSH for - one - rear seat - head restraint R.R.

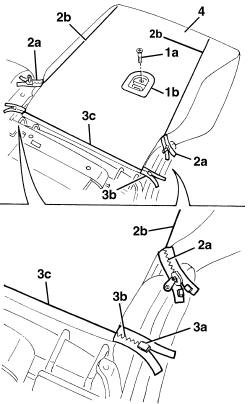

1. Undo the bolts (1a) and remove the trims (1b) at the back of the backrest cover.

2. Using the zip fastenings (2a), completely open the side sections (2b) of the backrest cover.

3. Using pliers, remove the hook (3a) then open the lower zip fastening (3b) along the entire lower section (3c) of the backrest cover.

4. Remove the cover with the padding.

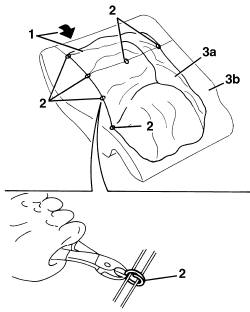

1. Release the cover from the perimeter of the upholstery.

2. Use clippers to cut the retaining rings between trim and padding.

3. Separate trim (3a) from padding (3b).

Refitting

Check that the cover is undamaged.

Fit the trim to the padding carefully and crimp.

Fit the cover to the perimeter of the upholstery.

Position the padding on the frame carefully.

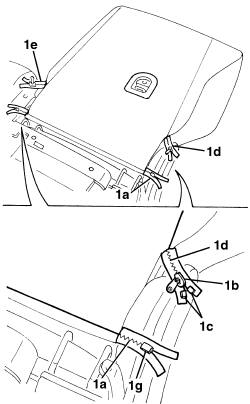

1. To close the zip fastening (1a), use the zip (1b) after having removed the hooks (1c) using pliers.

2. After having closed the zips (1a), (1d), (1e), to prevent them from opening accidentally, fit the retaining hooks (1c) and (1g) to the ends of the actual zip fastenings.
