RIGHT SIDE SLIDING REAR SEAT - R.R.

Operation 7050A08 · Rear seat assembly

Removing

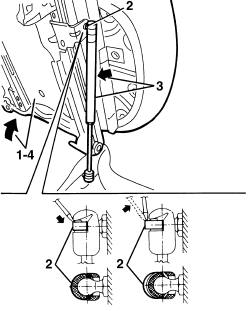

1. Recline forward and lift the seat to be removed.

2. Prise up the retaining clip on the upper end of the telescopic strut using a screwdriver (without detaching).

3. Lower the telescopic strut.

4. Lower the seat again.

1. Undo the front bolts.

2. Remove the seat.

Refitting

Check that the seat and the mountings are not damaged.

Position the seat and secure it using the bolts.

Re-attach the telescopic strut and fit the retaining clip.

Place the seat in the correct position.
