Radio aerial support - r r

Operation 5570T27 · Car radio and car telephone

Removing

Open the tailgate.

1. Disengage the central rear seat belt terminals (1b) from their seating (1a).

2. Undo the bolts.

3. Remove the trim (3a), disengaging it from the terminals (1b).

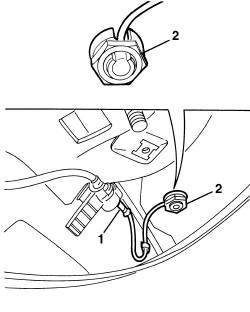

1. Disconnect the aerial lead connection.

2. Unscrew the special nut with notched washer.

1. Working from the vehicle roof, recover the aerial base with cable.

Refitting

Check that the aerial is not damaged.

Fit the cable, position the aerial base and secure from inside with a nut.

Connect the aerial lead connection.

Position the trim and fix it with the bolts.

Check to ensure the sound system is working properly.
