Introduction - MANOEUVRING AND WARNING SIGNALS

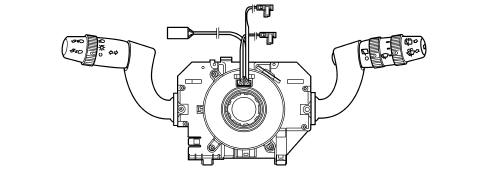

The steering column switch unit is illustrated in the diagram.

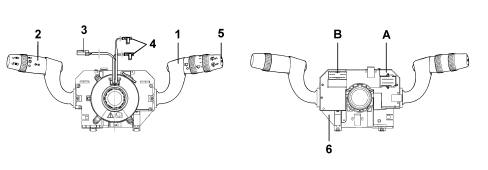

casing

It is a part of the steering column switch unit containing the electrical circuits and the switching and automatic release mechanisms which return the left lever to the rest position once the steering wheel has been realigned.

1 - Right lever with front/rear wiper controls

2 - Left lever with lighting/direction indicator controls

3 - Horn/radio controls cable

4 - Air Bag connectors

5 - Trip Computer button

6 - Internal electronic module

A, B - Connectors

casing

The front part of the casing housing the clock spring which provides the interface with the steering wheel.

The electronic module is connected to the casing; the rear of the casing contains the housings for the electrical connectors.

ELECTRONIC MODULE

This is the electronic control unit which controls the wiping functions and is mechanically secured to the casing to which it is electrically connected by means of special terminals.

It controls the operation of:

• Windscreen wiper: sweep rate
• Rear wiper: sweep rate and controlled by reverse;
• Windscreen washer function: 'smart' washing;
• Rearscreen washer function:'smart' washing;
• Rain sensor (management of signal coming from sensor

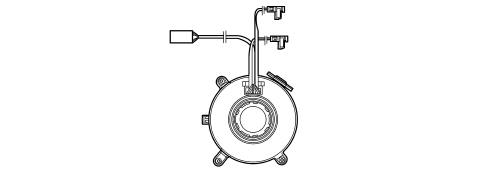

CLOCK SPRING

CLOCK SPRING

It has two functions:

• to transmit the rotation of the steering wheel to the automatic release mechanism inside the casing.
• to transfer the electrical signal for the controls on the steering column (horn and other optional serves) and connect the AIR-BAG module.

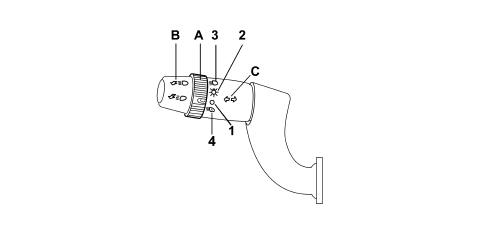

LEFT LEVER

It includes the lighting and direction indicator controls.

All the commands are activated via the lever or the ring nut at the end of the actual lever.

A - Main lights switch; (on ring nut)

B - Control for main beams / flasher; (on lever)

C - Control for direction indicators and lane change; (on lever)

MAIN LIGHTS SWITCH

This control is at the end of the lever and is activated by turning a special ring nut.

There are 3 stable positions for the ring nut when it is rotated in an anti-clockwise direction:

• Pos. 1 = No circuit switched on
• Pos. 2 = Side lights
• Pos. 3 = Side lights + go ahead for dipped/main beam headlamps + rear fog lamp.
• Pos. 4 = Side light and low beam Auto function

All the wheel manoeuvres are possible with the left lever in the dipped headlamps position, it should not be possible to make the above movements with the lever in the main beam headlamps position.

DIPPED/MAIN BEAM HEADLAMPS SWITCH

The operation is achieved by moving the lever perpendicular to the steering column (in other words lever moved from the rest position towards the dashboard).

The control has two positions, one unstable and one stable.

It is only possible to switch the dipped / main beam headlamps with the main lights switch (A) in position 3.

CONTROL FOR FLASHER - MAIN BEAM

This operated by pulling the lever from the rest position towards the centre of the steering wheel, the action is unstable as a result of which when the lever is released it returns to the rest position.

DIRECTION INDICATORS CONTROL

The direction indicators are operated by moving the lever on the steering wheel plane in two directions - clockwise and anti-clockwise.

The automatic release device intervenes for each stable position of the direction indicators and has the function of returning the lever to the rest position after the steering wheel has been realigned.

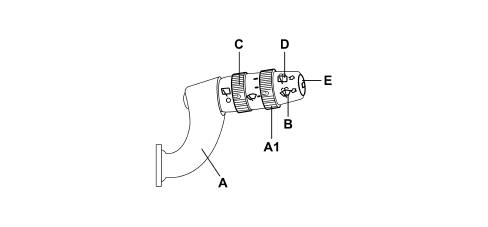

RIGHT LEVER

This includes the front and rear wiper controls. All the commands are activated via the lever or the ring nuts on the actual lever. There is also a button on the end of the lever which controls the Trip Computer functions Characteristic of working principle 5560 INSTRUMENT PANEL.

A - Windscreen wiper operation;

A1 - Windscreen wiper intermittent adjustment / Rain sensor sensitivity;

B - Windscreen washer operation;

C - Rearscreen wiper operation;

D - Rearscreen washer operation;

E - Trip Computer button

ELECTRONIC MODULE

This is the electronic control unit which controls the operation of the electric windscreen and rearscreen wiper motors and the smart washing functions.

In particular, it controls the operation of the:

• Windscreen wiper (stroke frequency for all trim levels);
• Rear wiper: sweep rate and control by reverse engagement;
• Windscreen washer function ('smart' washing for all versions);
• Rearscreen washer function ('smart' washing for all versions);
• Rain sensor (management of signal coming from sensor, if fitted)

WINDSCREEN WIPER OPERATION

The operation is achieved by moving the lever on the steering wheel, there are 5 different positions:

Pos. 1 = Single stroke (unstable)

Pos. 2 = No circuit switched on (stable): rest position

Pos. 3 = Intermittent/Automatic (stable)

Pos. 4 = 1st speed continuous (stable)

Pos. 5 = 2nd speed continuous (stable)

WINDSCREEN WIPER INTERMITTENT ADJUSTMENT / RAIN SENSOR SENSITIVITY

This control is at the end of the lever and is operated by rotating a special ring nut in a clockwise direction in 4 stable positions corresponding to:

• LOW trim level: from Pos. 1 to Pos. 4 = Increasing wiping frequency;
• HIGH TRIM LEVEL: from Pos. 1 to Pos. 4 = Increasing rain sensor sensitivity;

REAR WIPER CONTROL

This control is on the lever and is activated by turning a special ring nut.

The control has 2 STABLE positions and is turned in a clockwise direction:

• Pos. 1 = No circuit switched on;
• Pos. 2 = Rearscreen wiper activated;

All the instructions given for the operation of the windscreen wiper are valid.

REAR WASHER CONTROL

It is operated by pushing the lever towards the dashboard, the operation is unstable as a result of which when the lever is released it returns to the rest position.

The activation of the control involves the simultaneous operation of the rearscreen wiper with the 'smart washing' function (windscreen washer function).

Composition and operation of windscreep and rear wiper functions Characteristic of working principle 5550 MANOEUVRING AND WARNING SIGNALS.

STEERING COLUMN SWITCH UNIT ELECTRONIC MODULE PIN-OUT

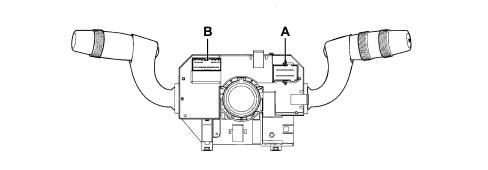

Rear view

A - Connector A

B - Connectors B/C

STEERING COLUMN SWITCH UNIT ELECTRONIC MODULE PIN-OUT

Connector A Pin Out

Connector B/C pinout

The engine managment systems for petrol engines with motorized throttles and diesel engines with electronically controlled injection times include the Cruise Control function, i.e. a system which automatically maintains the cruising speed set by the driver.

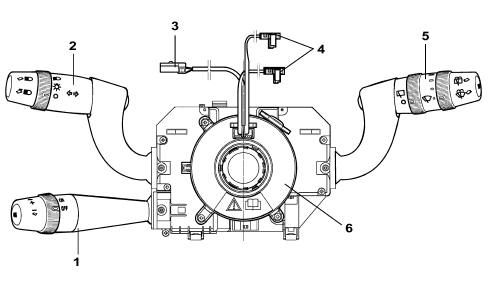

1 - Cruise Control lever

2 - Lights/direction indicators lever

3 - Horn/radio connector

4 - Air Bag connectors

5 - Front/rear wiper control stalk

6 - Clock spring

The Cruise Control lever is integrated in the steering column switch unit, the third lever incorporates the following controls:

• a switch with a ring nut for activating/deactivating the Cruise Control;
• a switch with a ring nut with the function of memorizing the vehicle speed increase/decrease;
• a Resume button for recalling the memorised speed.

Constitution and operation of Cruise Control functions Characteristic of working principle 5580 SPECIAL ACCESSORIES].
