Panda (141) Factory Service Manual

Year

1986–2003

Section

Technical data (2000 range) › Leaf spring

00 Introduction and technical dataLeaf spring · page 1 of 3

Rear suspension tubular rigid axle connected to the bodyshell by two three-leaf springs and flexible mountings.

Double acting, telescopic, hydraulic shock absorbers

Leaf spring

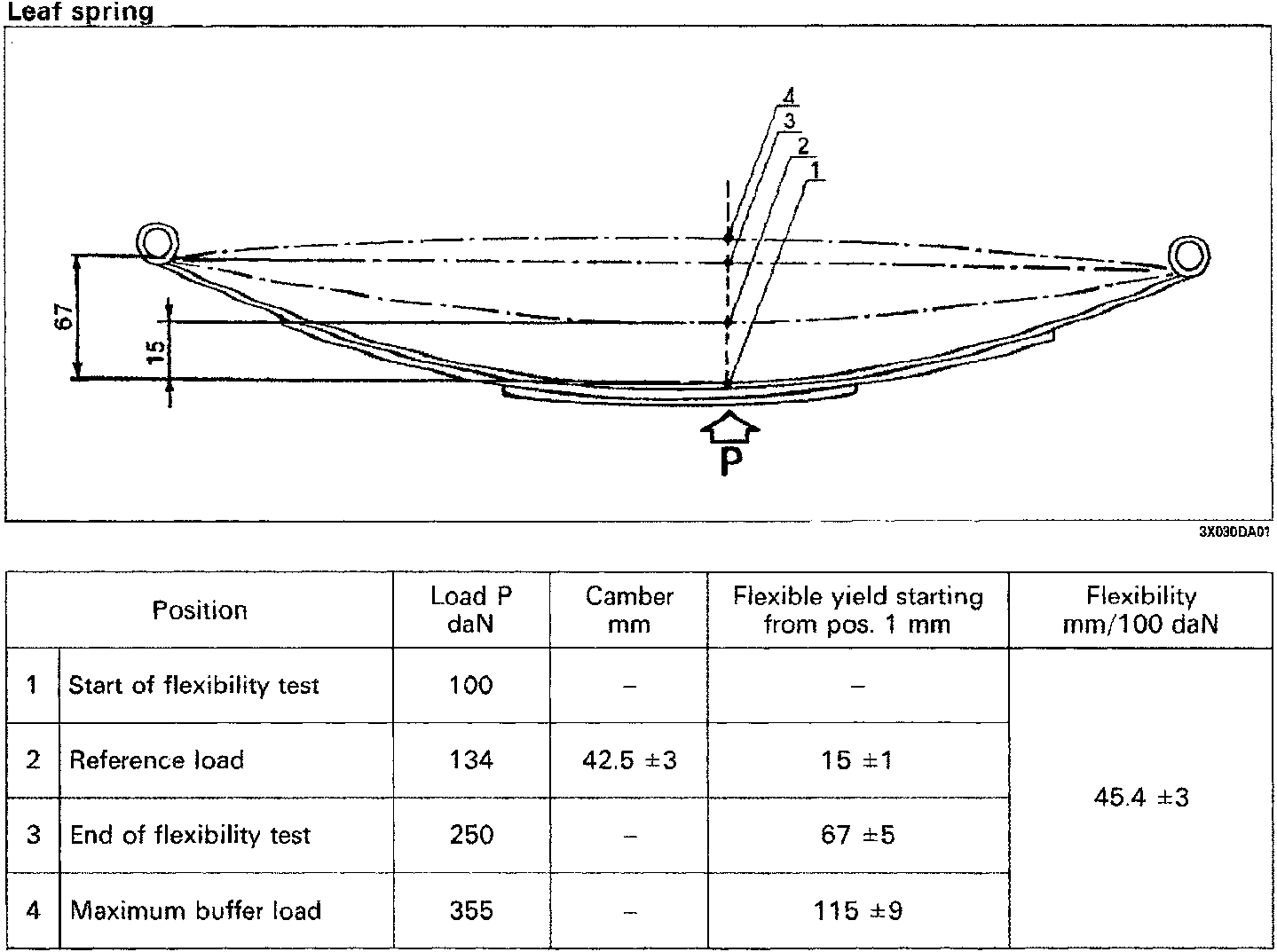

Position		Load P daN	Camber mm	Flexible yield starting from pos. 1 mm	Flexibility mm/100 daN
1	Start of flexibility test	100	–	–	45.4 ±3
2	Reference load	134	42.5 ±3	15 ±1
3	End of flexibility test	250	–	67 ±5
4	Maximum buffer load	355	–	115 ±9

Shock absorbers

Type: double acting, telescopic	Way Assauto
Open (start of damping action)	mm        340 ±2
Closed (metal against metal)	mm        195 ±3
Travel	mm        145
