Measurements and fittings
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (2000 range) › Measurements and fittings
00 Introduction and technical dataMeasurements and fittings · page 1 of 2

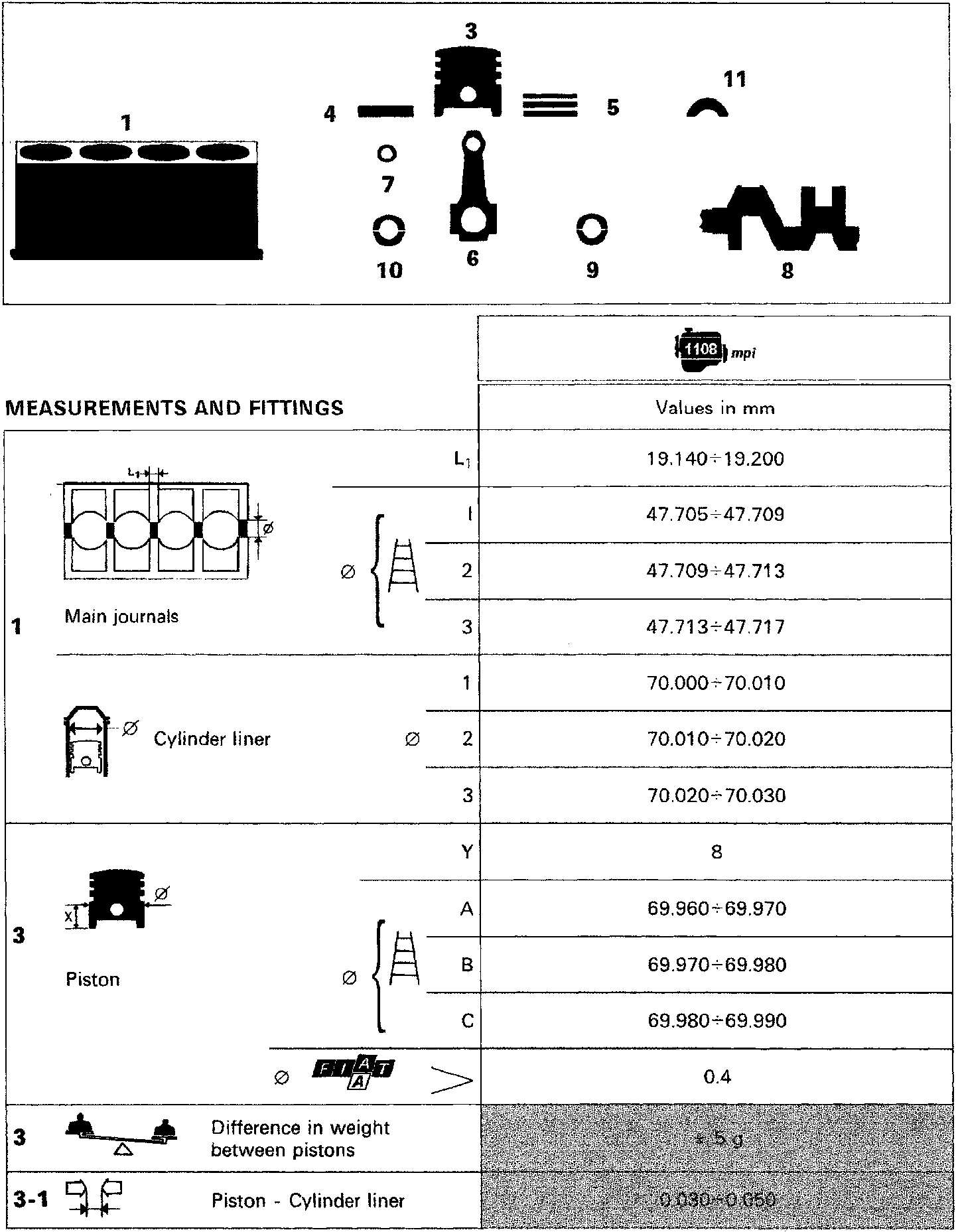

MEASUREMENTS AND FITTINGS
| mpi | ||||
|---|---|---|---|---|
| Values in mm | ||||
| 1 | Main journals | L1 | 19.140÷19.200 | |
| Ø { | 1 | 47.705÷47.709 | ||
| 2 | 47.709÷47.713 | |||
| 3 | 47.713÷47.717 | |||
| 2 | Cylinder liner | Ø | 1 | 70.000÷70.010 |
| 2 | 70.010÷70.020 | |||
| 3 | 70.020÷70.030 | |||
| 3 | Piston | Y | 8 | |
| Ø { | A | 69.960÷69.970 | ||
| B | 69.970÷69.980 | |||
| C | 69.980÷69.990 | |||
| Ø [FIAT logo] > | 0.4 | |||
| 3 | Difference in weight between pistons | ± 5 g | ||
| 3-1 | Piston - Cylinder liner | 0.030÷0.050 | ||
