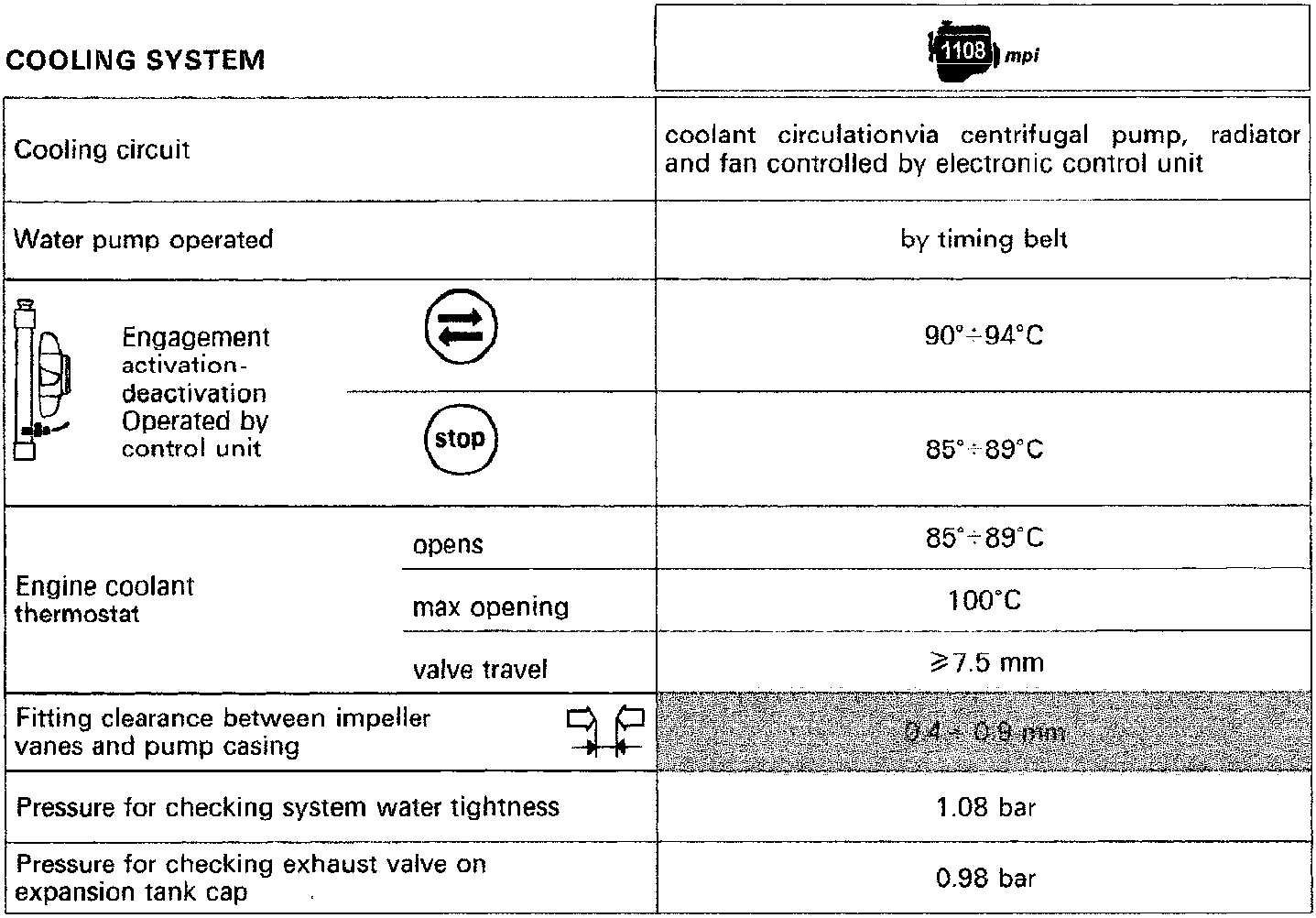

COOLING SYSTEM	[1108 mpi]
Cooling circuit	coolant circulationvia centrifugal pump, radiator and fan controlled by electronic control unit
Water pump operated	by timing belt
Engagement activation- deactivation Operated by control unit	90°÷94°C
	85°÷89°C
Engine coolant thermostat	opens	85°÷89°C
	max opening	100°C
	valve travel	≥7.5 mm
Fitting clearance between impeller vanes and pump casing [diagram]	0.4 ÷ 0.9 mm
Pressure for checking system water tightness	1.08 bar
Pressure for checking exhaust valve on expansion tank cap	0.98 bar

FUEL SYSTEM

Make	Integrated electronic injection/ignition MPI – I.A.W. Weber-Marelli
Pump	electrical immersed in the tank
Output	≥ 110 l/h
Fuel pressure regulator setting	3 bar

CO₂ EXHAUST EMISSIONS	Panda [1108 mpi]	Panda 4x4 [1108 mpi]
CO₂ emissions in accordance with directive 199/100/CE	152 g/km	204 g/km
