Description
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda Dance) › Description
00 Introduction and technical dataDescription

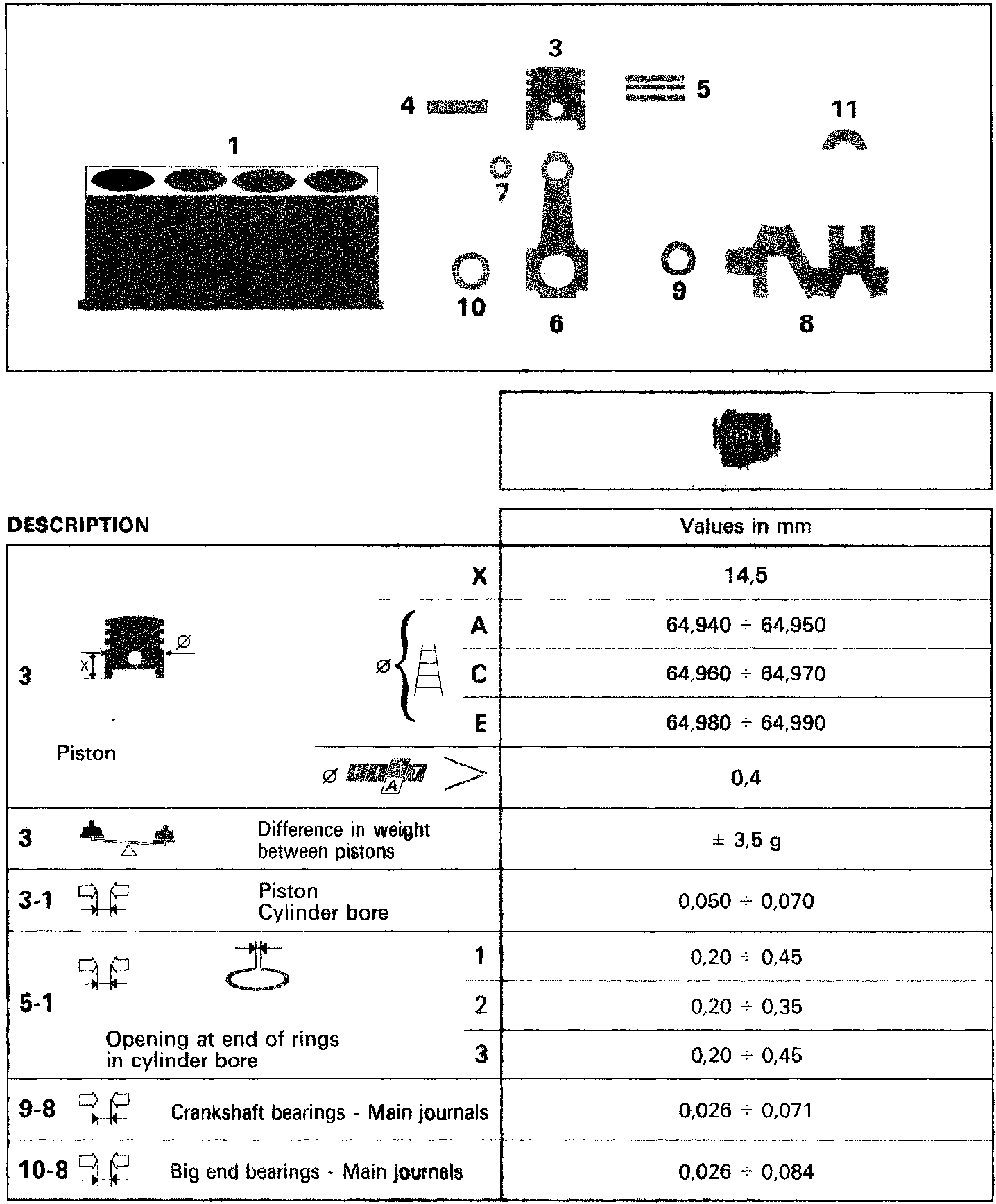

DESCRIPTION
| DESCRIPTION | Values in mm |
|---|---|
| 3 Piston X A C E Ø [diagram] > |
14,5 64,940 ÷ 64,950 64,960 ÷ 64,970 64,980 ÷ 64,990 0,4 |
| 3 Difference in weight between pistons | ± 3,5 g |
| 3-1 Piston Cylinder bore | 0,050 ÷ 0,070 |
| 5-1 Opening at end of rings in cylinder bore | 1 0,20 ÷ 0,45 |
| 2 0,20 ÷ 0,35 | |
| 3 0,20 ÷ 0,45 | |
| 9-8 Crankshaft bearings - Main journals | 0,026 ÷ 0,071 |
| 10-8 Big end bearings - Main journals | 0,026 ÷ 0,084 |
