00 Introduction and technical dataDescription

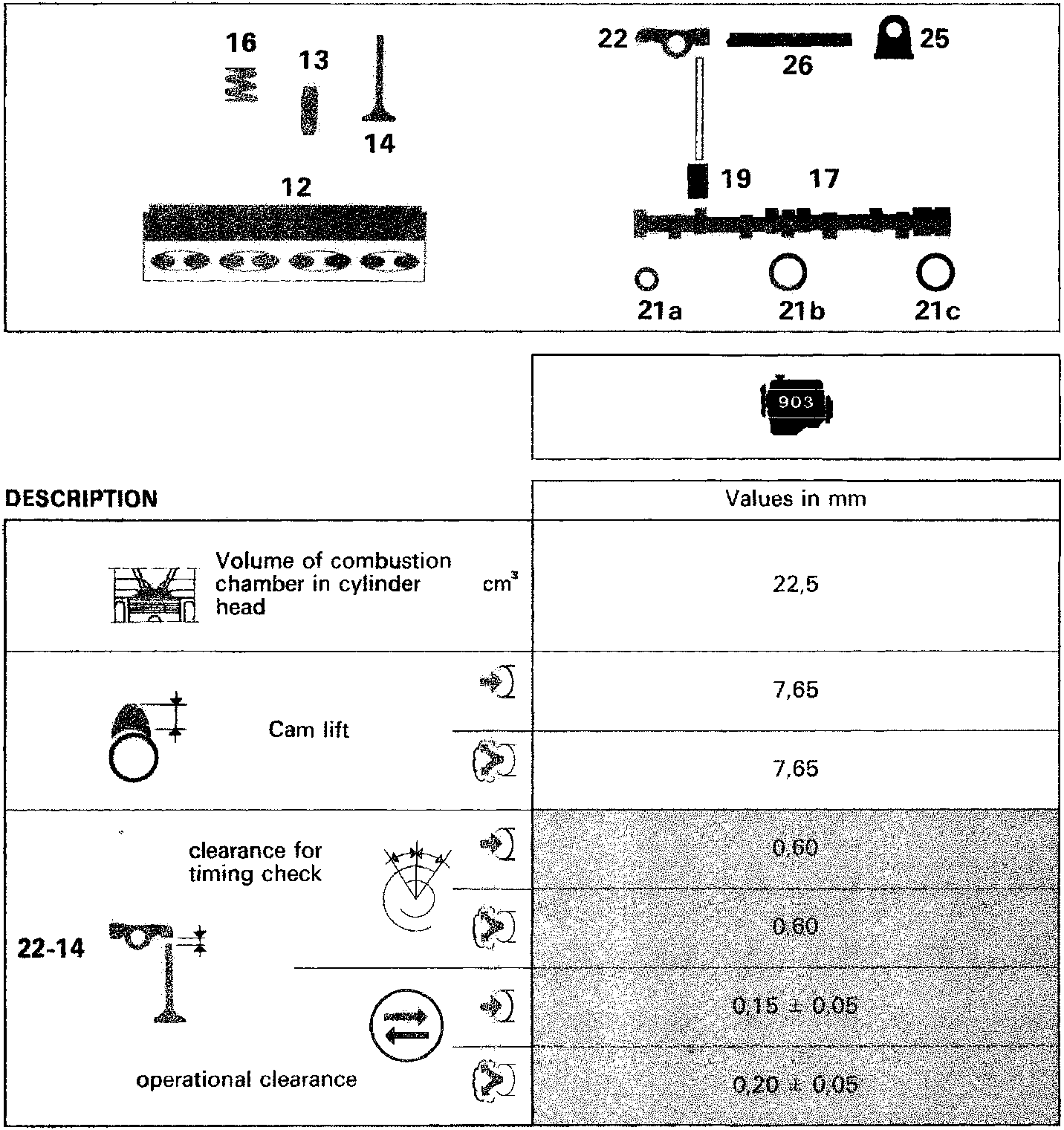

DESCRIPTION
| DESCRIPTION | Values in mm | |
|---|---|---|
| Volume of combustion chamber in cylinder head | cm³ | 22,5 |
| Cam lift | →[icon] | 7,65 |
| [icon] | 7,65 | |
| 22-14 clearance for timing check operational clearance |
→[icon] | 0,60 |
| [icon] | 0,60 | |
| →[icon] | 0,15 ± 0,05 | |
| [icon] | 0,20 ± 0,05 | |
