TIMING DIAGRAM

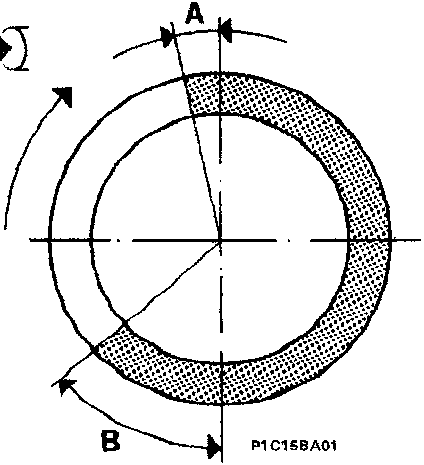

Timing diagram for inlet valve showing angles A and B with piston position

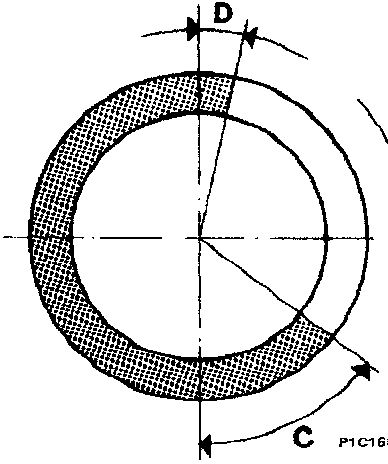

Timing diagram for exhaust valve showing angles C and D with piston position

TIMING ANGLES
A
B		 Inlet opens BTDC 7°
closes ABDC 36°
C
D		 Exhaust opens BBDC 38°
closes ATDC 5°
