00 Introduction and technical dataDifferential · page 1 of 2

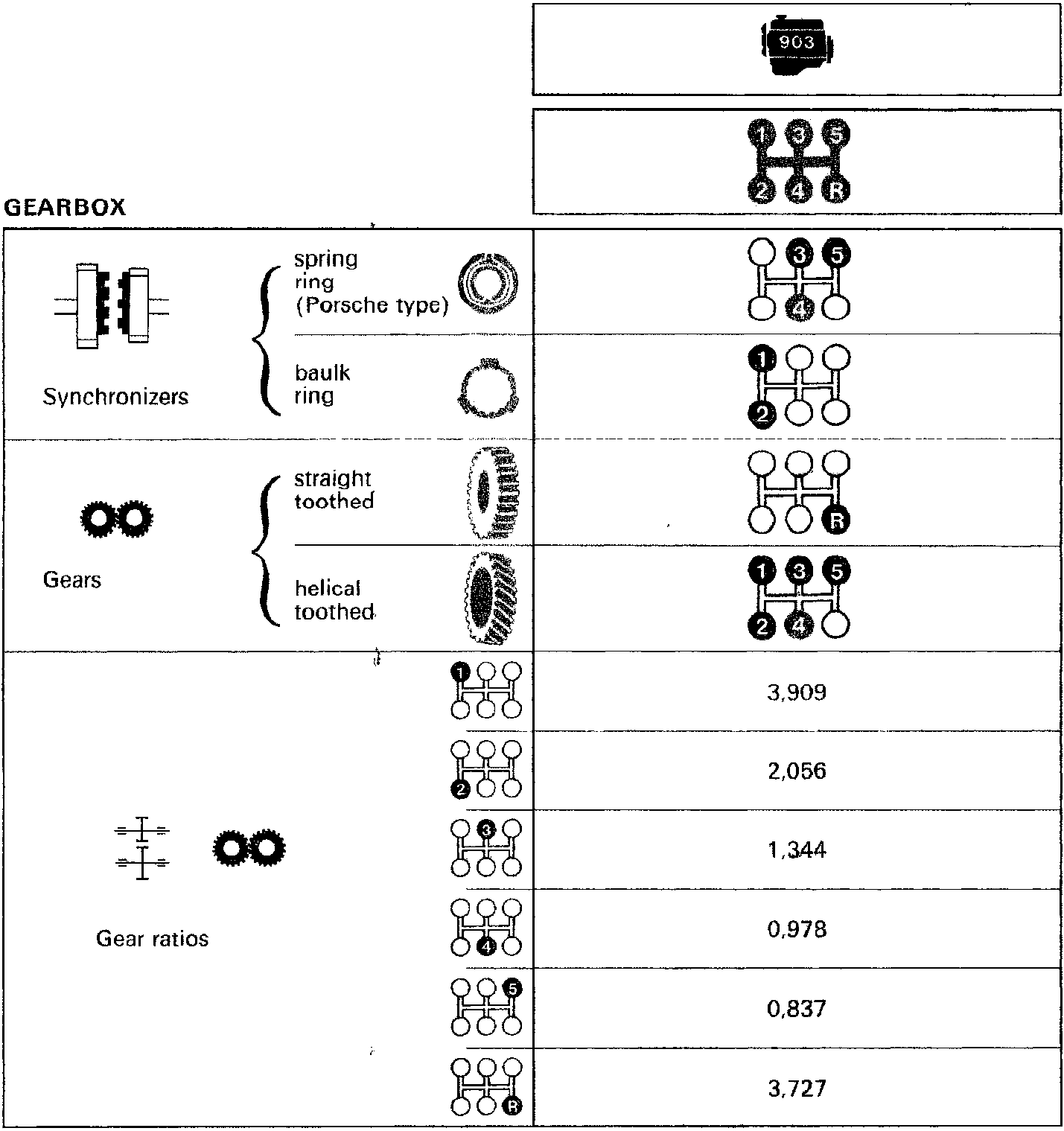

Diagram showing the 903 engine badge and a 5-speed manual gear shift pattern with positions 1, 3, 5 on the top row, 2, 4 on the bottom row, and R to the right of 4
Synchronizers spring ring
(Porsche type)
baulk ring
Gears straight toothed R
helical toothed
Gear ratios 1st 3,909
2nd 2,056
3rd 1,344
4th 0,978
5th 0,837
R 3,727

DIFFERENTIAL

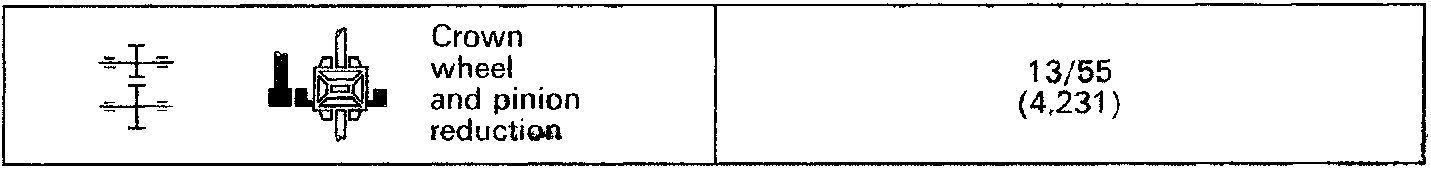

Diagram showing a gear ratio schematic and a differential assembly next to text describing crown wheel and pinion reduction
Crown wheel
and pinion
reduction
13/55
(4,231)
