44 Suspension and wheelsRemoving-refitting brake shoes · page 2 of 2
A hand using a wrench to remove a nut from the center of a wheel hub assembly

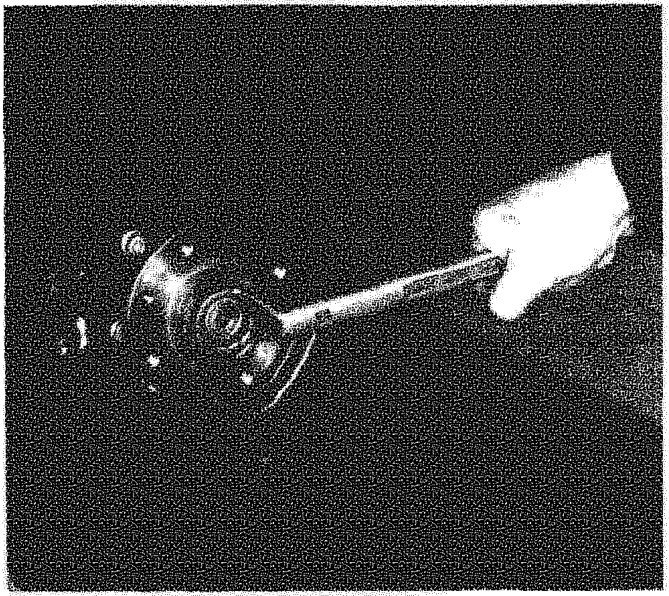

Removing wheel hub retaining nut

Each time the nut fixing the hub is removed it must be replaced with a new one.

A hand pulling the wheel hub assembly away from the vehicle's mounting point

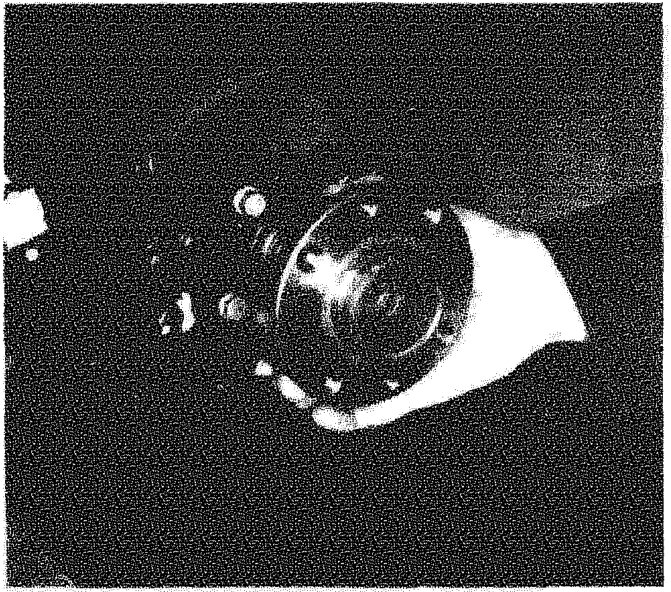

Removing-refitting wheel hub

Two views showing hands removing and refitting the brake back plate from the wheel hub

Removing-refitting brake back plate from hub
