Central locking - component location

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Electrically activated devices › Central locking - component location

Wiring diagrams and electrical functionsCentral locking - component location

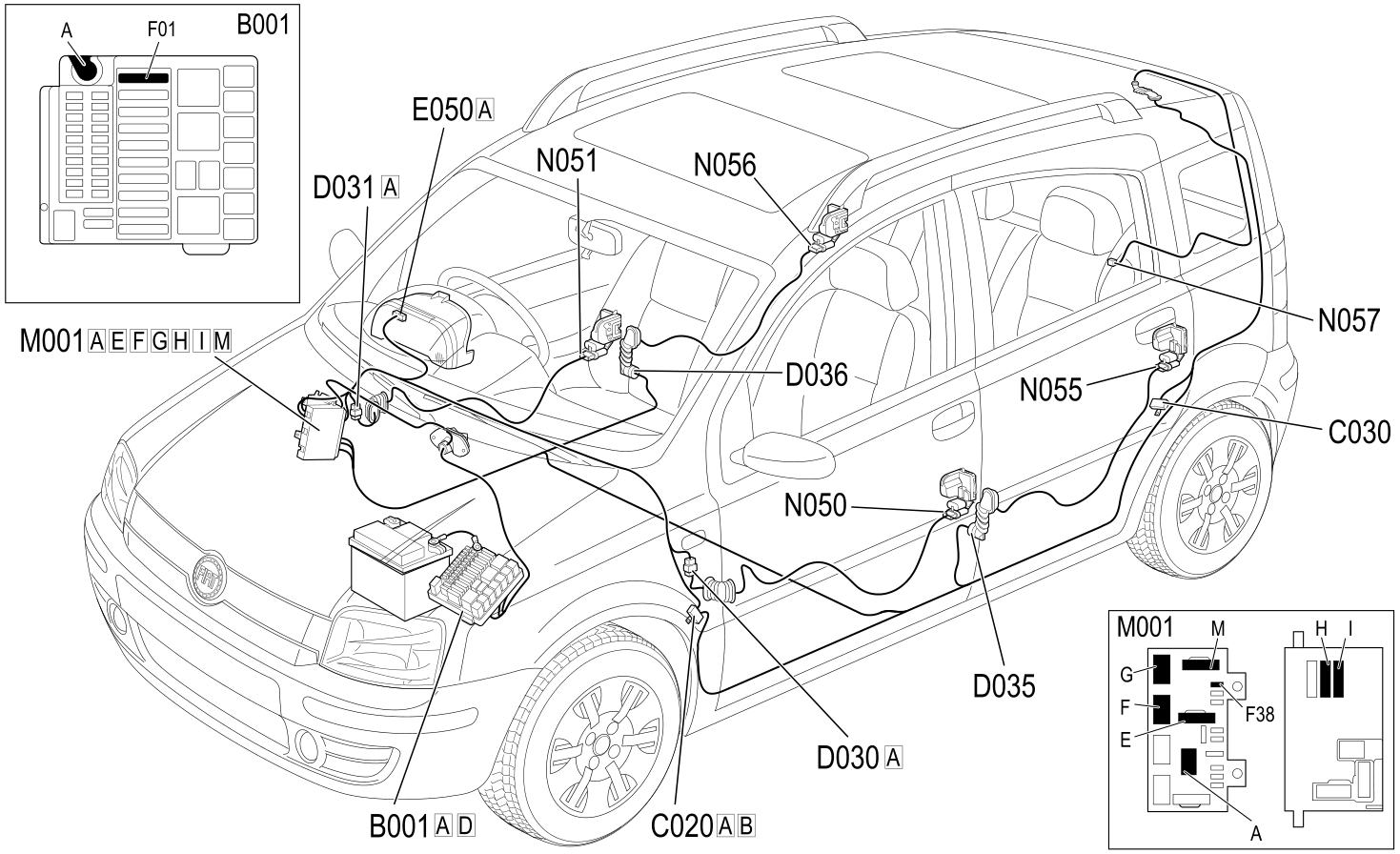

CENTRAL LOCKING - COMPONENT LOCATION

Right hand drive

Component location

COMPONENTS

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT	Op. 5505C VEHICLE COMPARTMENT WIRING
C20	PASSENGER SIDE DASHBOARD EARTH
C30	REAR LEFT EARTH
D30	REAR COUPLING FOR /FRONT DOOR. DRIVER''S SIDE
D31	RIGHT FRONT DOOR REAR COUPLING/.
D35	REAR/RIGHT DOOR CONNECTION LEFT
D36	RIGHT REAR/ .DOOR REAR COUPLING
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
N50	RIGHT FRONT DOOR LOCK LEFT	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N51	RIGHT FRONT DOOR LOCK MOTOR	Op. 7005N FRONT DOOR CENTRAL LOCKING SYSTEM
N55	REAR DOOR LOCK GEARED MOTOR LEFT	Op. 7010N REAR SIDE DOOR CENTRAL LOCKING SYSTEM
N56	RIGHT REAR. DOOR LOCK GEARED MOTOR	Op. 7010N REAR SIDE DOOR CENTRAL LOCKING SYSTEM
N57	BOOT LOCK GEARMOTOR	Op. 7015B TAILGATE LOCKING/OPENING DEVICES
