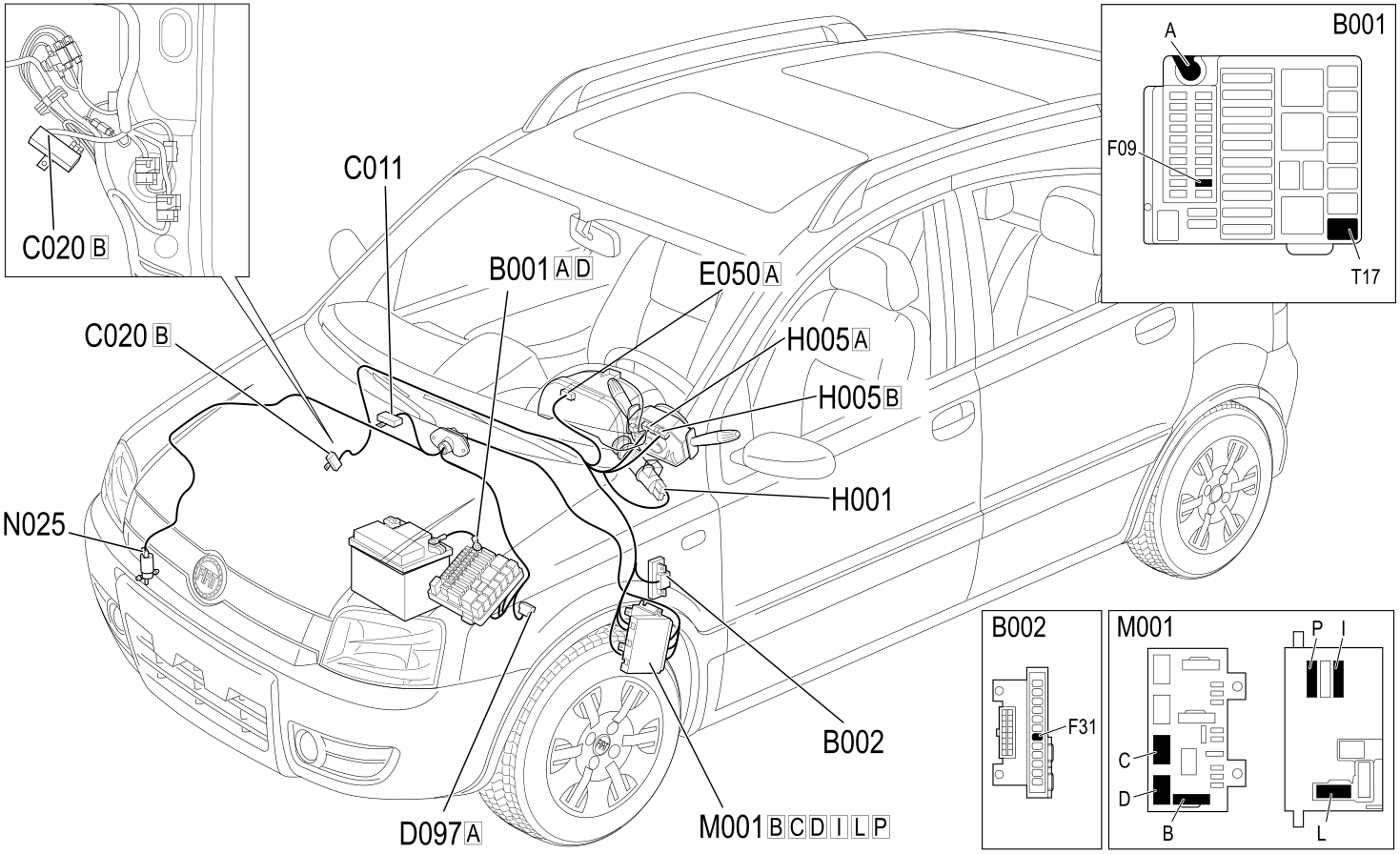

HEADLAMP WASHER - COMPONENT LOCATION
Component location
COMPONENTS
| Component code | Description | Reference to the assembly |
|---|---|---|
| B1 | Engine compartment junction unit | 5505C |
| B2 | Junction unit under dashboard | 5505C |
| C11 | Right front earth | |
| C11 | Right front earth | |
| C20 | Passenger dashboard earth | |
| D97 | Short circuit coupling | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H5 | Steering column switch unit | 5550A |
| M1 | Body computer | 5505A |
| N25 | Headlamp washer pump motor |
