00 Introduction and technical dataCombined

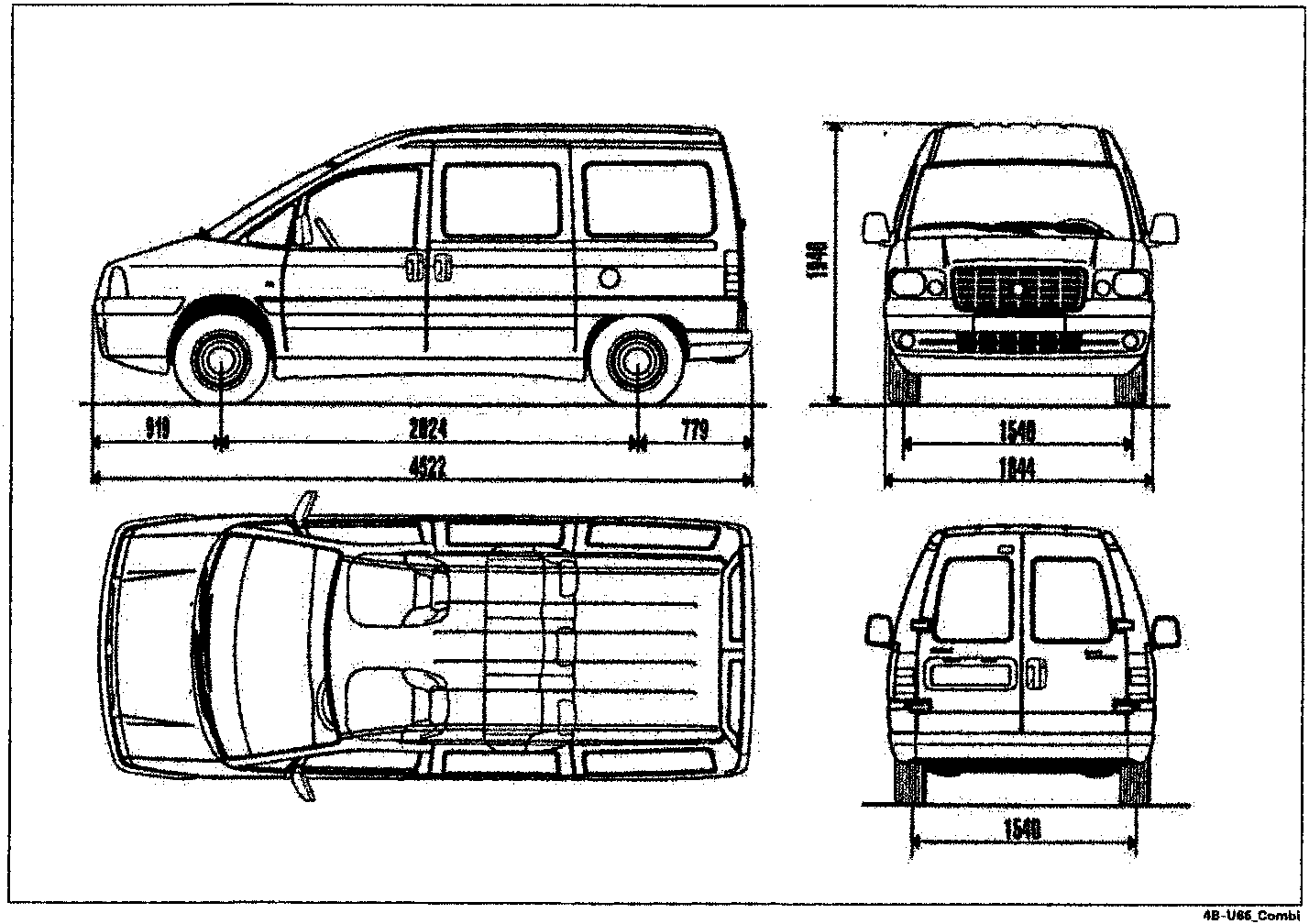

COMBINED
(*) Long wheelbase version
| 1868 D | 1997 JTD | 1997 JTD 16v | ||
|---|---|---|---|---|
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): |
kg | 1476 | 1595 ÷ 1707 | 1598 ÷ 1715 |
| Useful load including driver: | ||||
| - 5 seats | kg | +354 | +360 | +360 |
| - 6 seats | kg | +279 | +285 | +285 |
| - 8 seats | kg | +129 | +135 | +135 |
| - 9 seats | kg | +54 | +60 | +60 |
| Maximum permissible loads: | ||||
| - front axle: | kg | 1230 | 1211 ÷ 1224 | 1218 ÷ 1223 |
| - rear axle: | kg | 1230 | 1281 ÷ 1294 | 1281 ÷ 1294 |
| - total: | kg | 2205 | 2505 | 2505 |
| Maximum roof load | kg | 150 | 150 | 150 |
| Braked towing capacity | kg | 1100 | 1300 | 1300 |
| Unbraked towing capacity | kg | 750 | 750 | 750 |
| Max load on towball (braked trailer) | kg | 60 | 60 | 60 |

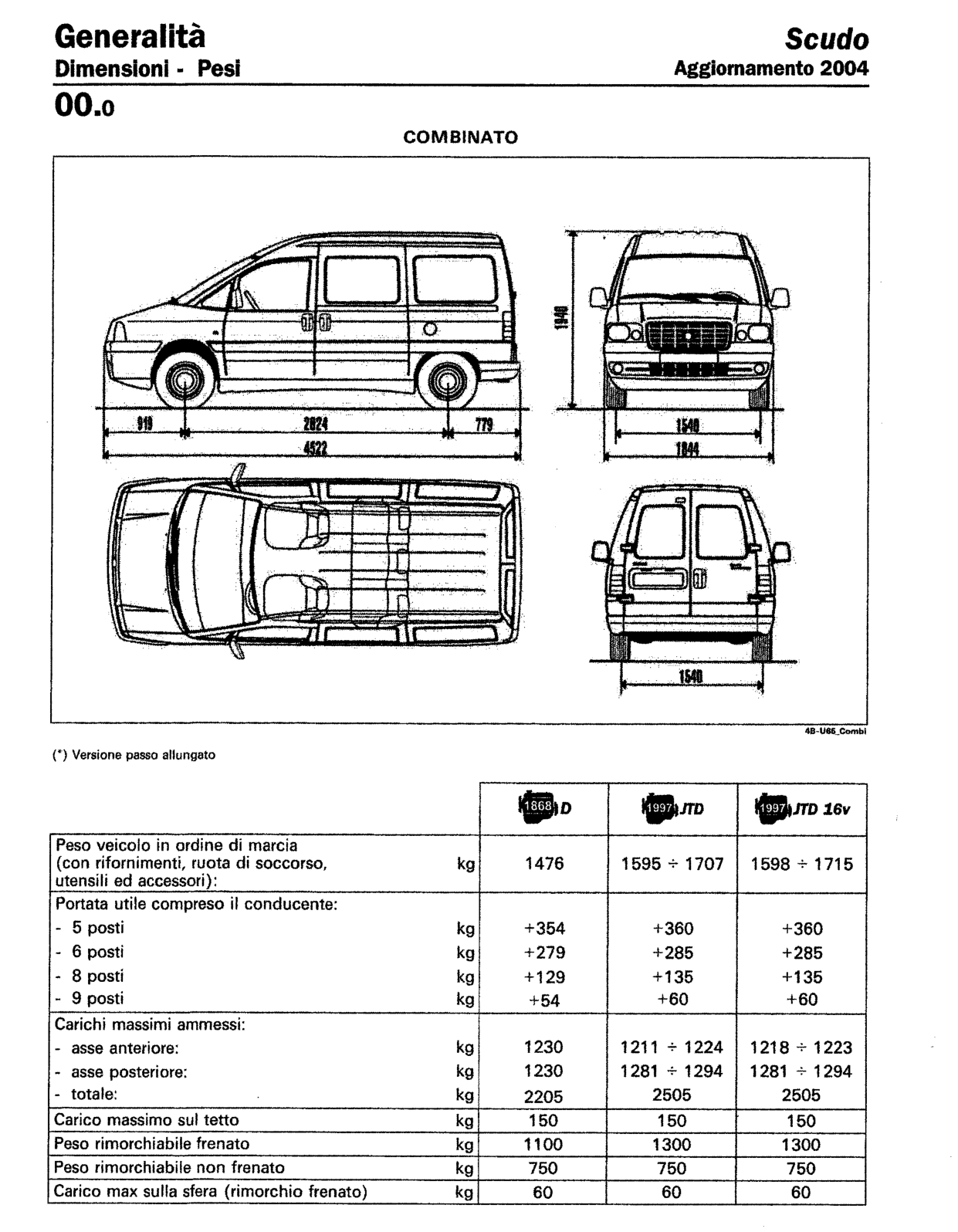

Original page
