00 Introduction and technical dataCombined

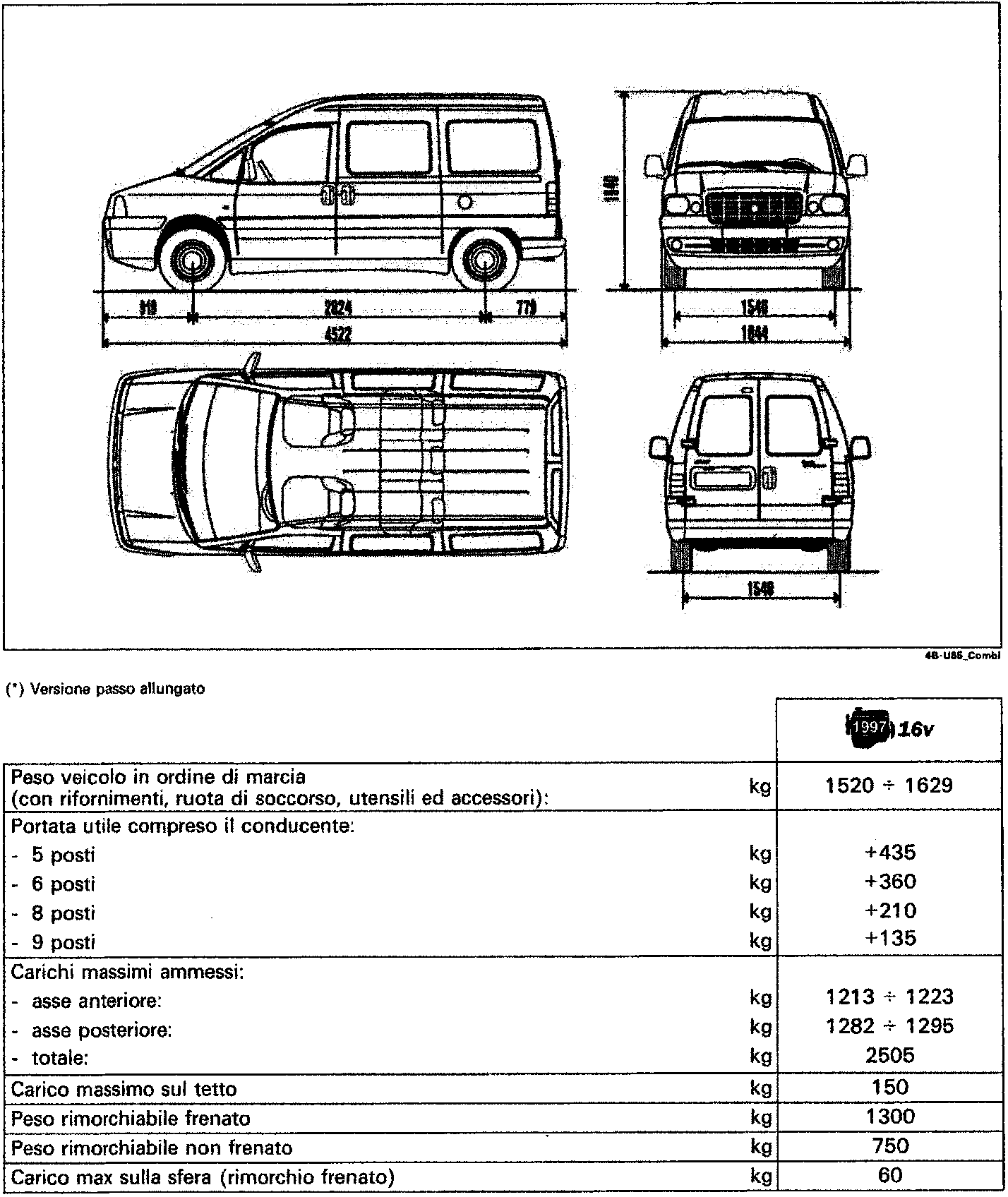

COMBINED
(*) Long wheelbase version
| 1997 16v | ||
|---|---|---|
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): | kg | 1520 ÷ 1629 |
| Useful load including driver: | ||
| - 5 seats | kg | +435 |
| - 6 seats | kg | +360 |
| - 8 seats | kg | +210 |
| - 9 seats | kg | +135 |
| Maximum permissible loads: | ||
| - front axle: | kg | 1213 ÷ 1223 |
| - rear axle: | kg | 1282 ÷ 1295 |
| - total: | kg | 2505 |
| Maximum roof load | kg | 150 |
| Braked towing capacity | kg | 1300 |
| Unbraked towing capacity | kg | 750 |
| Max load on towball (braked trailer) | kg | 60 |
(*) 2500 with automatic transmission.
