00 Introduction and technical dataFlatbed/glazed

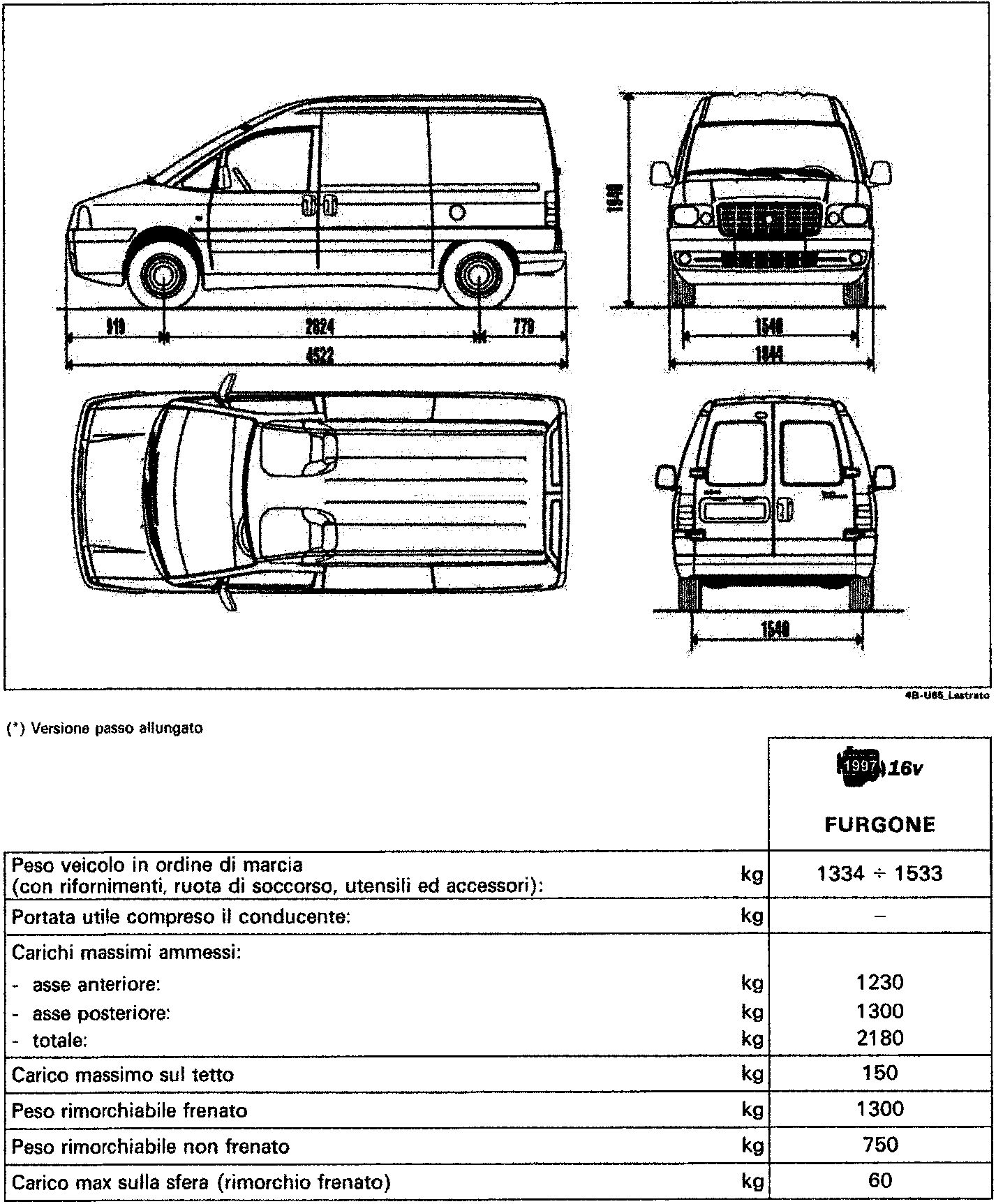

FLATBED/GLAZED
(*) Long wheelbase version
| 1997 16v VAN | ||
|---|---|---|
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): | kg | 1334 ÷ 1533 |
| Useful load including driver: | kg | – |
| Maximum permitted loads: | ||
| - front axle: | kg | 1230 |
| - rear axle: | kg | 1300 |
| - total: | kg | 2180 |
| Maximum roof load | kg | 150 |
| Braked towing capacity | kg | 1300 |
| Unbraked towing capacity | kg | 750 |
| Max load on towball (braked trailer) | kg | 60 |
