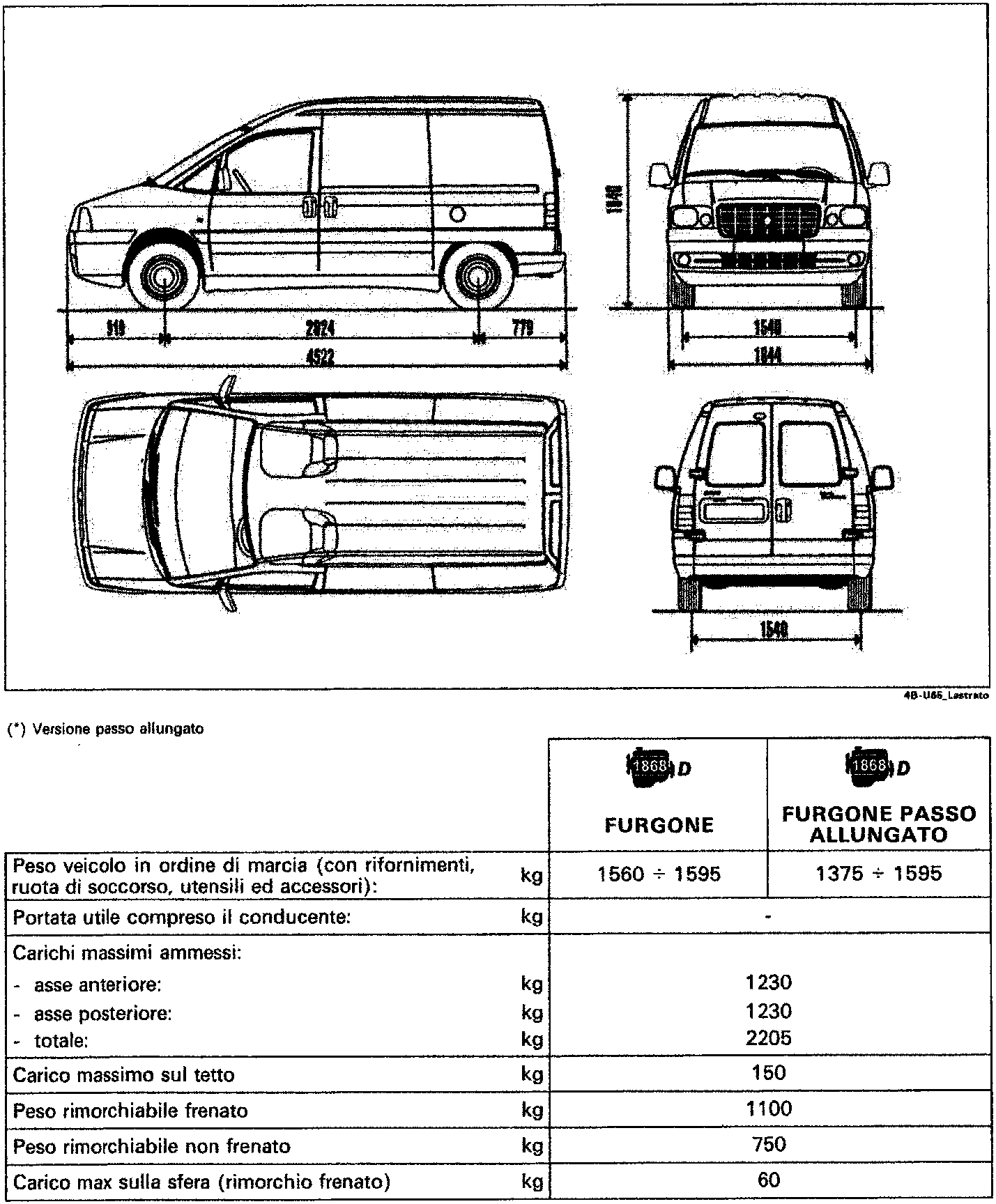

00 Introduction and technical dataFlatbed/enclosed
FLATBED/ENCLOSED
(*) Long wheelbase version
| 1868D VAN |
1868D LONG WHEELBASE VAN |
|
|---|---|---|
| Vehicle weight in running order (with fluids, spare wheel, tools and accessories): | kg 1560 ÷ 1595 |
1375 ÷ 1595 |
| Useful load including driver: | kg | - |
| Maximum permitted loads: - front axle: - rear axle: - total: |
kg kg kg 1230 1230 2205 |
|
| Maximum roof load | kg 150 |
|
| Braked towing capacity | kg 1100 |
|
| Unbraked towing capacity | kg 750 |
|
| Max ball load (braked trailer) | kg 60 |
