00 Introduction and technical dataFlatbed/glazed

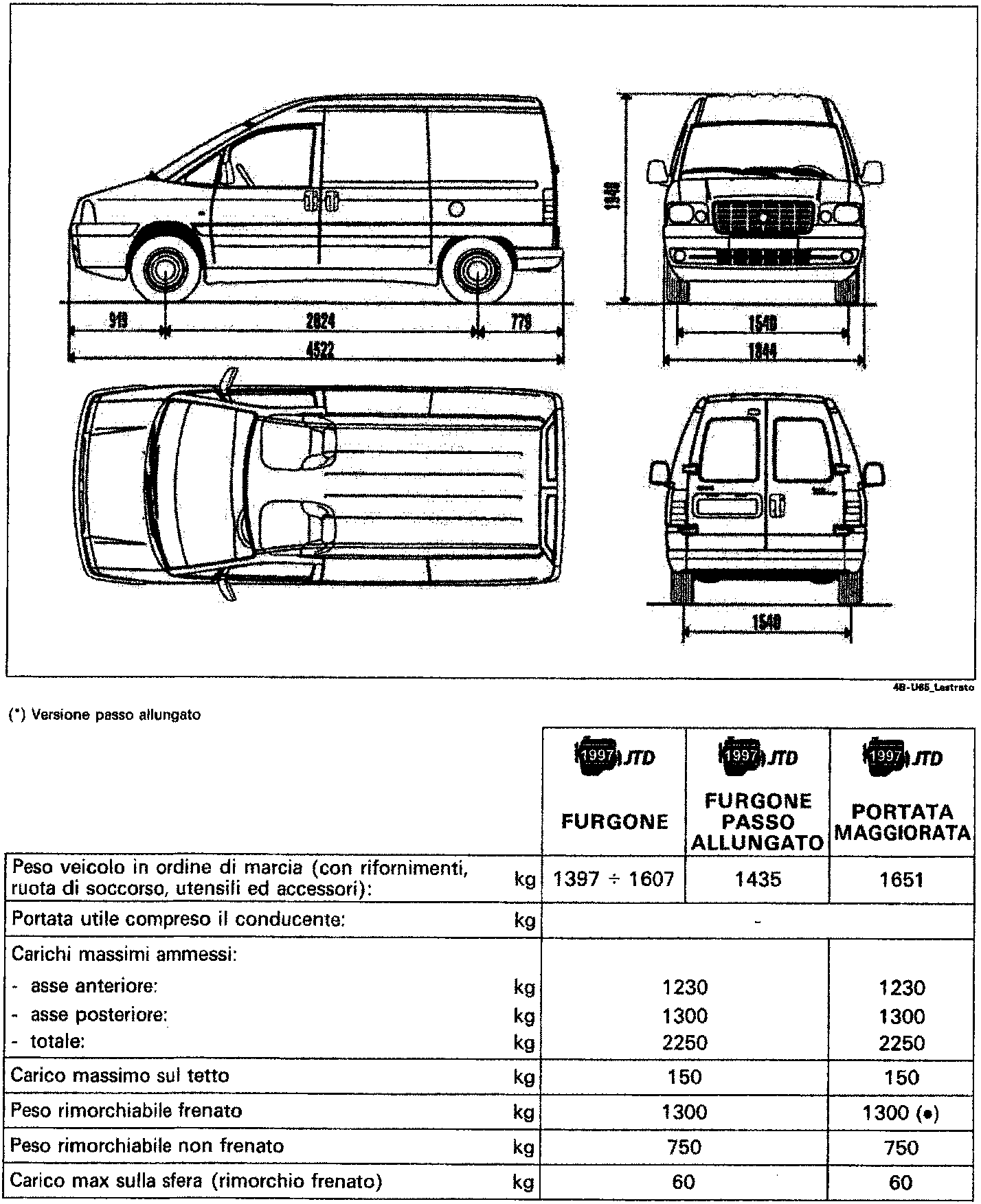

FLATBED/GLAZED
(*) Extended wheelbase version
| 1997 JTD VAN |
1997 JTD EXTENDED WHEELBASE VAN |
1997 JTD INCREASED PAYLOAD |
||
|---|---|---|---|---|
| Kerb weight (with fluids, spare wheel, tools and accessories): | kg | 1397 ÷ 1607 | 1435 | 1651 |
| Useful payload including driver: | kg | - | ||
| Maximum permissible loads: | ||||
| - front axle: | kg | 1230 | 1230 | |
| - rear axle: | kg | 1300 | 1300 | |
| - total: | kg | 2250 | 2250 | |
| Maximum roof load | kg | 150 | 150 | |
| Braked towing capacity | kg | 1300 | 1300 (●) | |
| Unbraked towing capacity | kg | 750 | 750 | |
| Max load on towball (braked trailer) | kg | 60 | 60 | |
(●) Within the limits of 3500 kg authorised maximum gross train weight.
