55 Electrical equipmentRecharging system
Recharging system

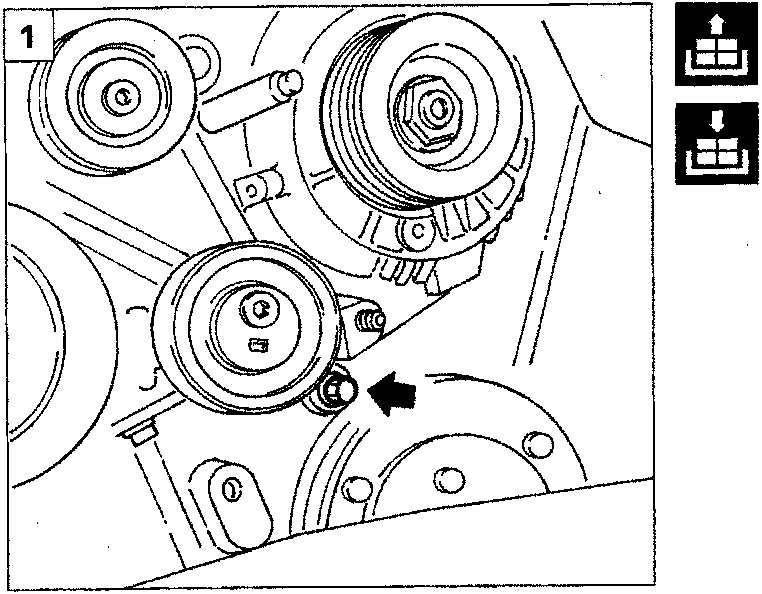

- Undo the bolt arrowed and remove it, complete with washer.

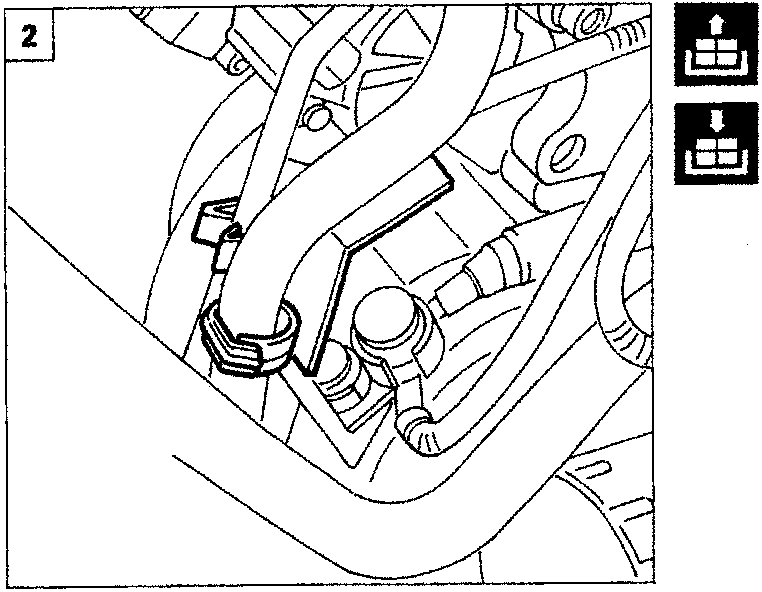

- Release the pipes from the retaining clips and remove the mounting bracket.

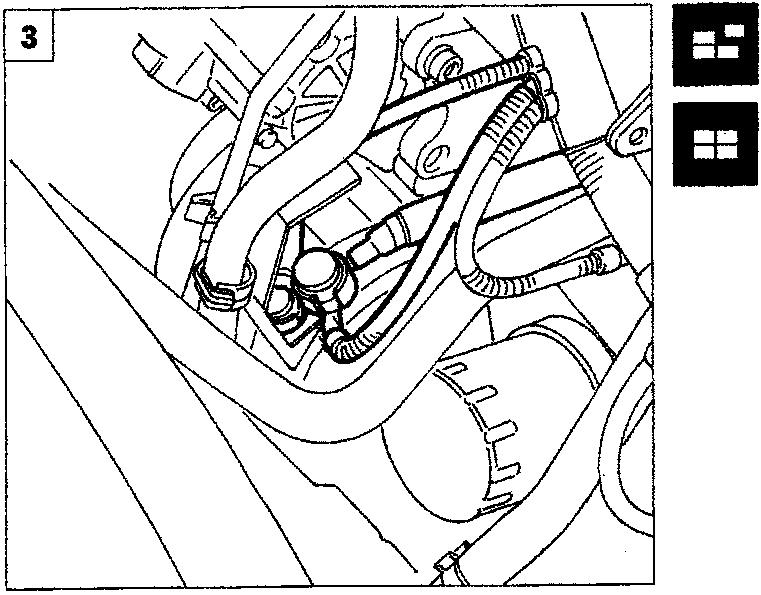

- Lif up the protective caps and disconnect the cables from the alternator.
