REMOVING-REFITTING ALTERNATOR

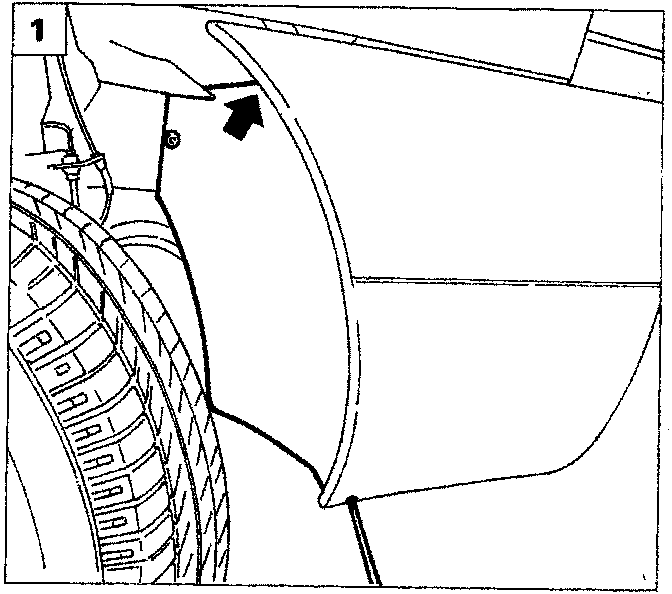

Diagram showing the front right wheel and wheelarch area with an arrow indicating a component location.

NOTE The procedure has been carried out on a model fitted with climate control system.

  1. Remove the front right wheel. Undo the three bolts, remove the button using tool 1878077000 and remove the wheelarch guard.

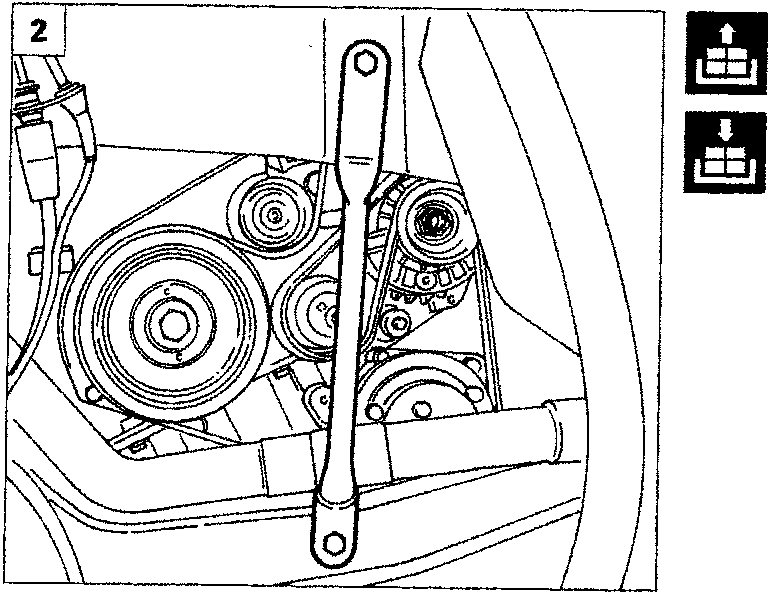

Diagram of the engine bay showing a link arm positioned across the belt and pulley assembly.
  1. Remove the link arm, shown in the figure, to facilitate the removal of the belt and alternator.

NOTE The belt is tensioned by means of a spring device; to slacken the belt tension, proceed as follows.

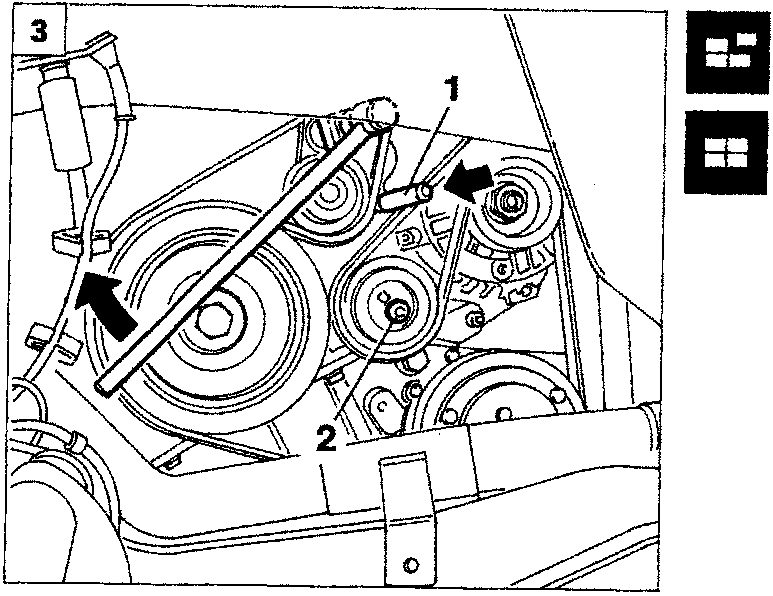

Diagram of the belt tensioner assembly showing a wrench applying force to the support (1) and a bolt (2) on the eccentric roller.
  1. Release the belt tensioner roller by rotating the support using a ½" square wrench in the direction of the arrow until the hole on the belt tensioner mounting lines up with the hole on the alternator mounting, then lock the assembly using tool 1860830000.
    Slacken the bolt (2) to allow the belt tensioner pretensioning eccentric roller to rotate, then remove the belt from the alternator pulley.
