REMOVING-REFITTING STARTER MOTOR

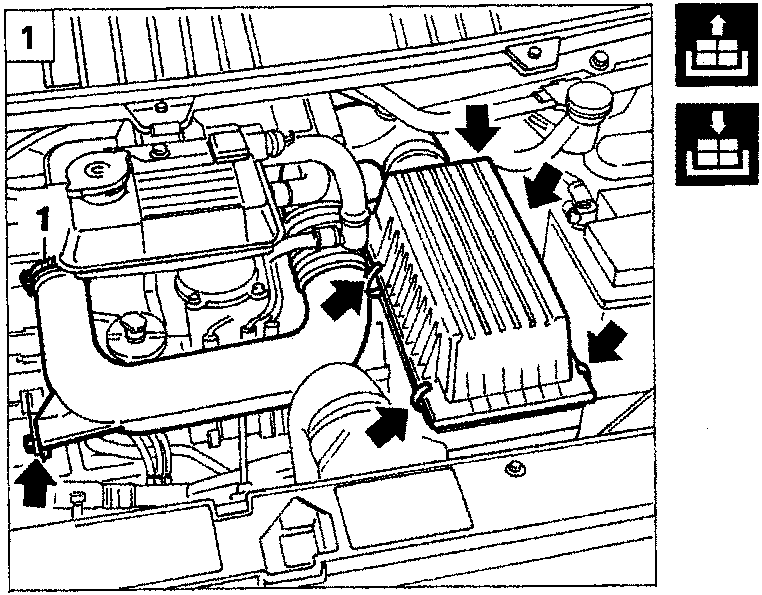

Engine bay showing air cleaner cover and duct with arrows indicating removal points and callout number 1.
  1. Undo the screw indicated, undo the clip (1) and release the clips shown in the figure. Remove the air cleaner cover complete with duct.

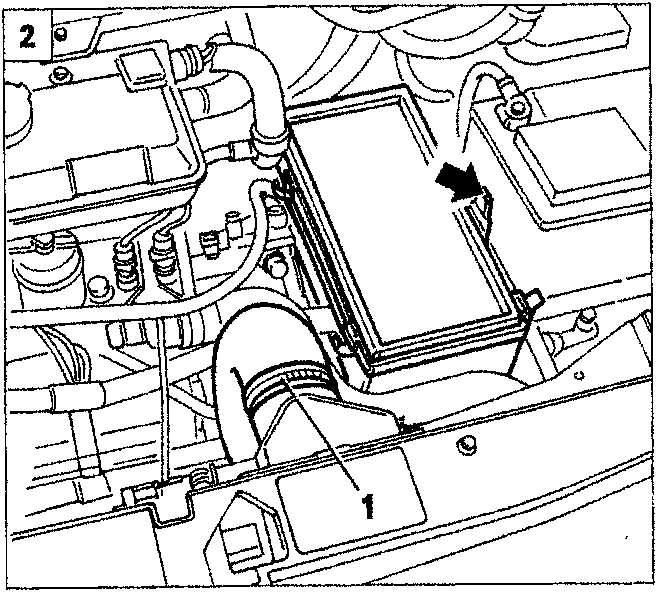

Engine bay showing air cleaner casing with arrows indicating retention points and callout number 1.
  1. Slacken the clip (1), release the retaining clip arrowed, then remove the air cleaner casing complete with air inlet duct.

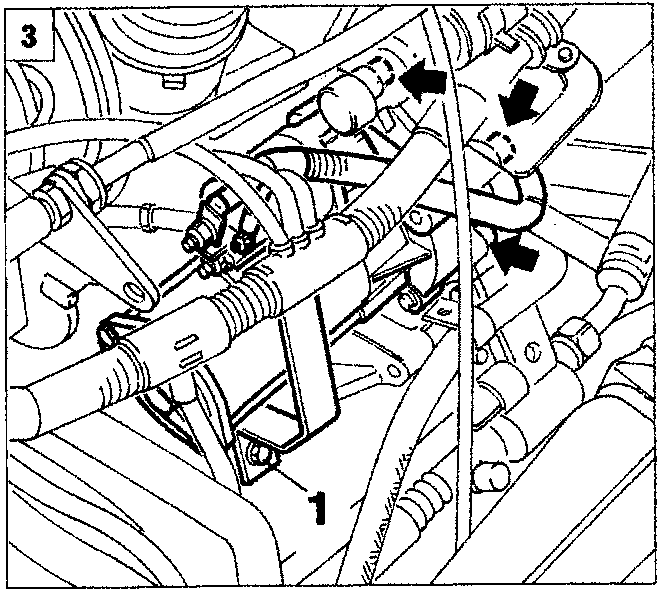

Starter motor area showing wiring loom bracket, supply cables, and mounting bolts with arrows indicating disconnection points and callout number 1.
  1. Undo the bolt (1), release the wirinig loom mounting bracket and remove it, disconnect the supply cables, undo the starter motor bolts and withdraw the starter motor from the vehicle.
