55 Electrical equipmentStarting system

Starting system

Figure 1 showing a hand withdrawing the armature from the starter motor casing
Figure 2 showing a screwdriver being used on the starter motor solenoid area
Figure 3 showing a pin being removed from the pinion engagement fork with callout 1

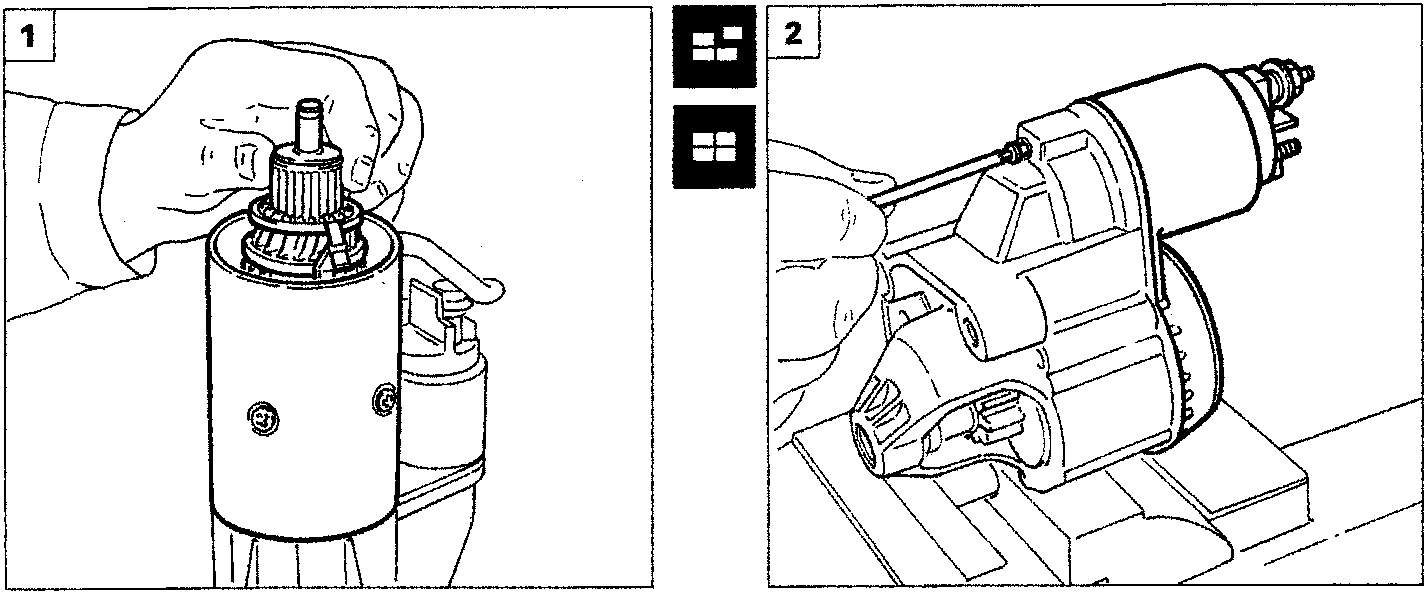

  1. Withdraw the armature and remove the casing complete with magnets.
  2. Undo the screw indicated and detach the solenoid carrier plate and reduction gear from the front end bracket.

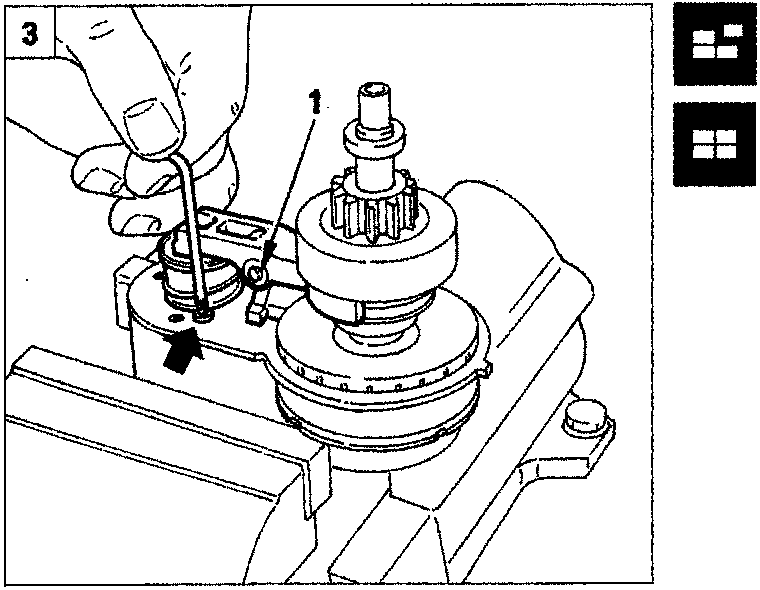

  3. Withdraw the pin (1) from the pinion engagement fork, then remove the fork and the moving part of the solenoid with the return spring. Undo the bolt indicated and detach the plate from the fixed part of the solenoid.

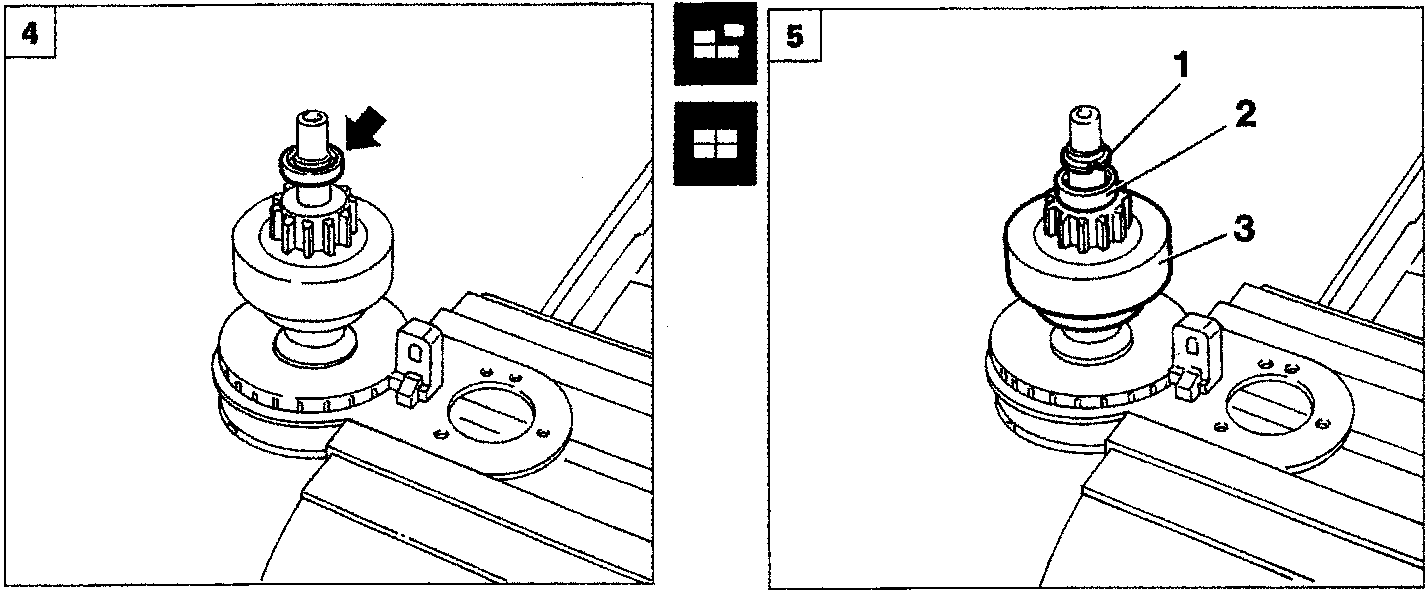

  4. Using a press and drift 1860626000, remove the pinion retaining ring.
  5. Withdraw the circlip (1) and the retaining ring (2) and remove the pinion (3).
Figure 4 showing the pinion retaining ring being removed with an arrow indicator
Figure 5 showing callouts 1, 2, and 3 identifying the circlip, retaining ring, and pinion respectively
